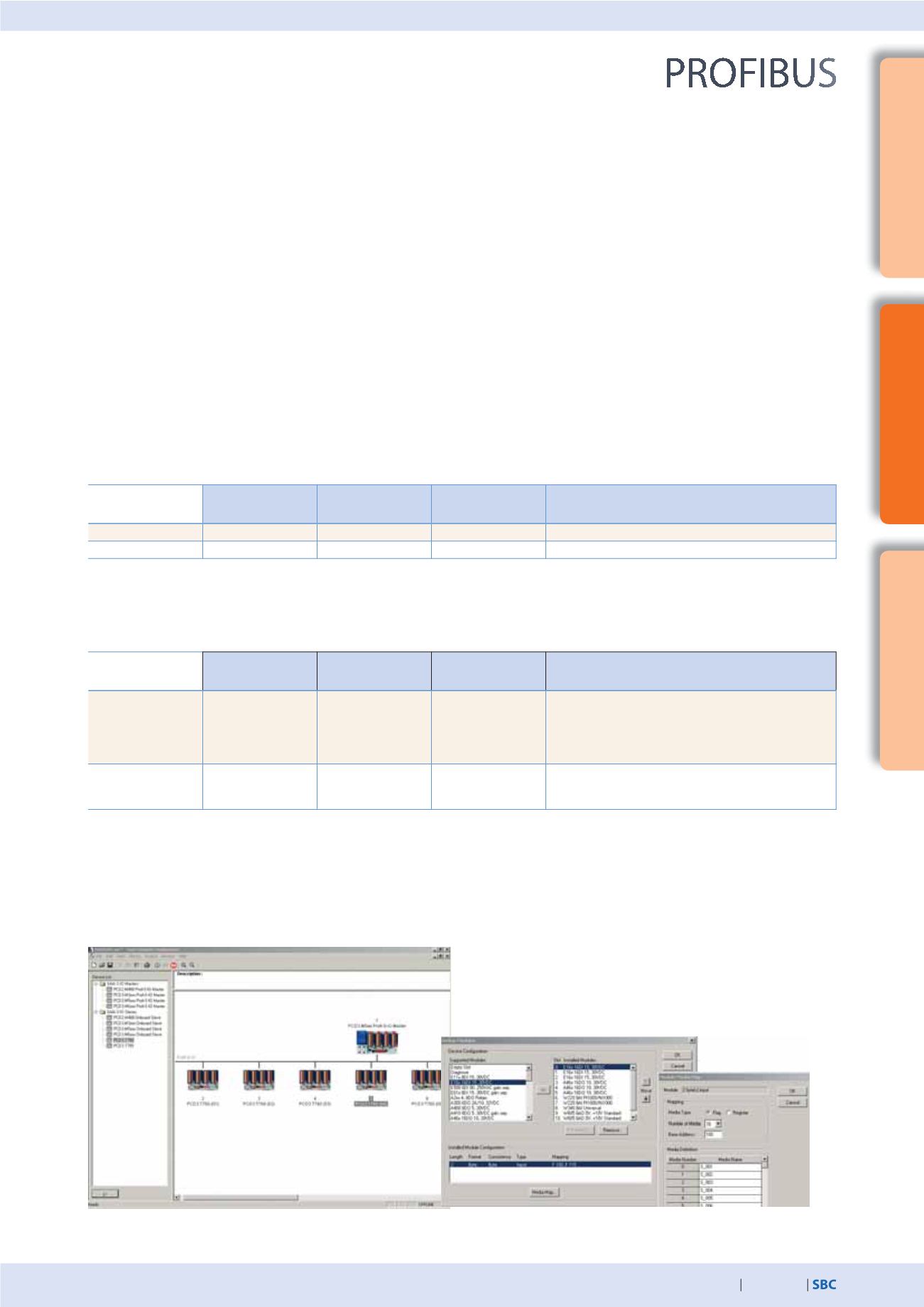

Communication & interaction
2.5.5
Profibus DP
Integrating machines and industrial environments
Saia PCD® systems with Profibus DP master 12 MBit/s connection
Baud rate
Connection
Port
Galvanic
separation
System
Up to 12 MBit/s
D-Sub connector
#10
Yes
PCD3.M6560
Up to 12 MBit/s
D-Sub connector
#10
Yes
PCD2.M5540 with PCD7.F7500 module
Saia PCD® systems with Profibus DP slave, on-board interface
Baud rate
Connection
Port
Galvanic
separation
System
Up to 187.5 kBit/s
Terminal block
#2
No
PCD3.M6560, PCD3.M6860,
PCD3.M5340, PCD3.M3xxx,
PCD3.M2130V6,
PCD3.M2330A4Tx, PCD3.M2230A4T5,
PCD1.M2xxx, PCD1.M0160E0
Up to 1.5 MBit/s
D-Sub connector
#10
Yes
PCD3.M5560, PCD3.M5540,
PCD3.M5440, PCD2.M5540,
PCD3.T760 (RIO)
Profibus in building automation systems
According to EN50170, Profibus is the internationally
standardised bus for industry and building automation systems.
Profibus opens up the world of standardised network
communication for a wide range of applications between
different manufactures:
`
Profibus is open and not tied to any specific manufacturer
Network configurators for Profibus
The PG5 programming tool contains convenient network configuration tools for all types of network. The user uses these to define
his variables, objects and network parameters.
Profibus-DP with Saia PCD®
Saia PCD® controllers are available with Profibus DP master and slave connections. Version DP V0 is supported. Decentral data points
under the designation PCD3.T760 supplement the Profibus product range and enable the construction of decentralised automation
solutions.
Thanks to the diverse communication properties, Saia PCD® controllers are ideal for use as communication gateways, e.g. Ethernet–
Profibus, BACnet–Profibus, etc.
`
PNO, the Profibus user organisation, maintains a qualified
certification system and assesses Profibus products with
regard to compliance with standards and interoperability
`
Profibus DP, the up to 12 MBit/s network protocol for the field
layer in automated production is also used in building
automation systems thanks to the large range of accessories
