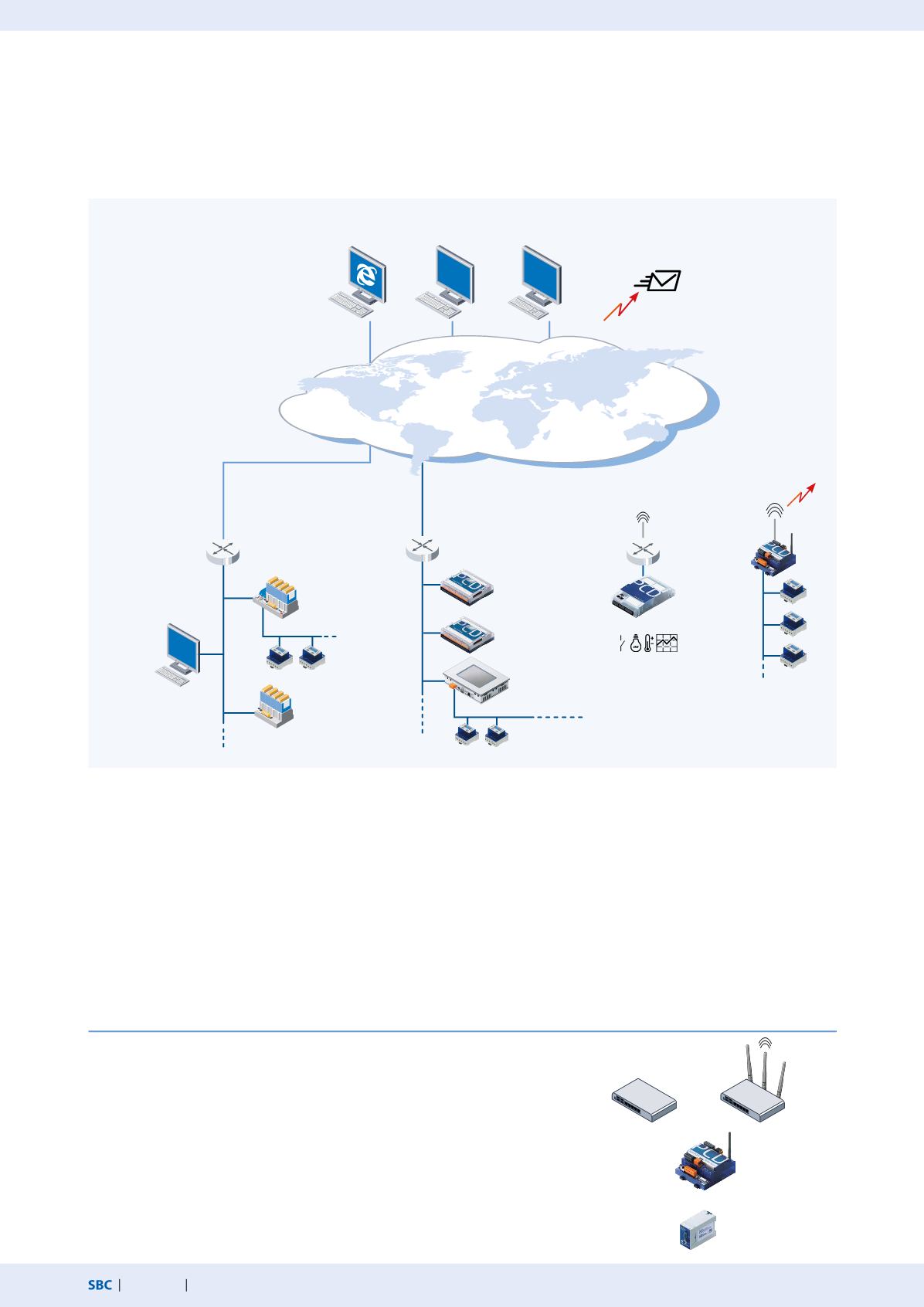

Networks for Wide Area Automated Systems
PCD controllers support the connection to the WAN (Wide Area Network) via all established telecommunication technologies. The IP-
based protocols (automation servers) are used to connect direct to the Internet either wired via Ethernet interfaces and DSL broadband
routers or wirelessly with GPRS/UMTS routers. Non-IP based connections with analogue, digital (ISDN) or GSM modems are also sup-
ported. The PCD3.WAC (Wide Area Controller) allows a direct connection via the integrated analogue, ISDN or GPRS/GSM modems.
Protocols and services
The WEB/IT protocols are used to support access to the automation server functions (web/FTP server, email, SNMP, etc.). The S-Bus pro-
tocol enables communication with the PG5 programming device, the SBC OPC server or Visi.Plus. S-Bus is also used to exchange data
between PCD controllers via the WAN.
Other IP-based protocols such as Modbus TCP and BACnet® are also supported.
Local installation
Local infrastructure
Products for Wide Area Automation
Broadband routers for DSL or 3G (UMTS) telecom networks: standard commercial
products of third party providers can be used
PCD3.M2330 Wide area controller with optional integrated PSTN, ISDN or GSM/GPRS
modem (for further details see chapter A1.2.5 “Wide Area Controller”)
PSTN (Q.M716-KS1), ISDN (Q.M726-RS1) and GSM DIN rail modem (Q.M736-AS2)
(for further details see chapter 5.9 "Switch cabinet components")
2.4
Wide Area Automation with Saia PCD®
Spanning geographical distances with a larger number of substations often places significant demands on a system. The integrated
automation server can be used to combine geographically distributed systems easily using the Internet and Intranet. This allows the
systems to be monitored and controlled remotely. It is possible to access the controllers directly during commissioning or servicing.
Email
Management level
Telecom
Internet
Intranet
SMS
DSL
3G (UMTS)
