Communication & Interaction
The Profi S-Bus and Profi S-IO protocols support the operation of Saia PCD® controllers and Saia PCD3.T760 RIOs on the Profibus FDL
network. The protocols can be operated up to 1.5 MBit/s via the RS-485 interfaces integrated in the base unit. This enables economic
and fast communication networks in multi-master operation. Multi-protocol operation is supported on the same connector and cable.
The same selection of the bus parameters (baud rate, timing, etc.) enables the PCD devices to be operated along with devices from
other manufacturers on one Profibus DP network.
Profi S-Bus for operating PCD controllers on Profibus FDL networks
Properties, functions
Profi S-Bus supports the communication between
PCD controllers in multi-master operation
a PCD controller and the PG5 programming device (via Profi S-Link)
PCD control and OPC server or SCADA system with Profi S-Bus driver (via Profi S-Link)
a PCD controller (PCDWeb Server) and web browser with Web Connect software (via Profi S-Link)
Multi-protocol operation on the same Profibus network (e.g. Profi S-Bus mixed with
other Profibus DP devices)
Gateway function for gateways (Profi S-Bus
Serial S-Bus, Profi S-Bus
Ether S-Bus)
Programming the exchange of data between PCD controllers with FBoxes for cyclic or
event-controlled data transfer – baud rate: up to 1.5 MBit/s
Network infrastructure and topology: in accordance with the Profibus specification
Profi S-Link adapter: PCD8.K120
Properties, functions
Profi S-IO supports the data transfer between a PCD.RIO master
and PCD3.T760 RIOs.
The data transfer is configured by the Profi S-IO network
configurator
Multi-protocol operation is supported (e.g. Profi S-Bus and
Profi S-IO)
Baud rate: up to 1.5 MBit/s
Network infrastructure and topology in accordance with
Profibus specification
Profi S-IO
Profibus
RIO Master
RIOs
PCD3.T760
Profi S-IO protocol for operating PCD3.T760 RIOs on the Profibus
Profi S-Bus protocol in multi-master operation on a standard Profibus network.
PG5, SCADA, OPC,
web browser
Ethernet
Profibus
Profi S-Bus
Profi S-link adapter
2.5.4

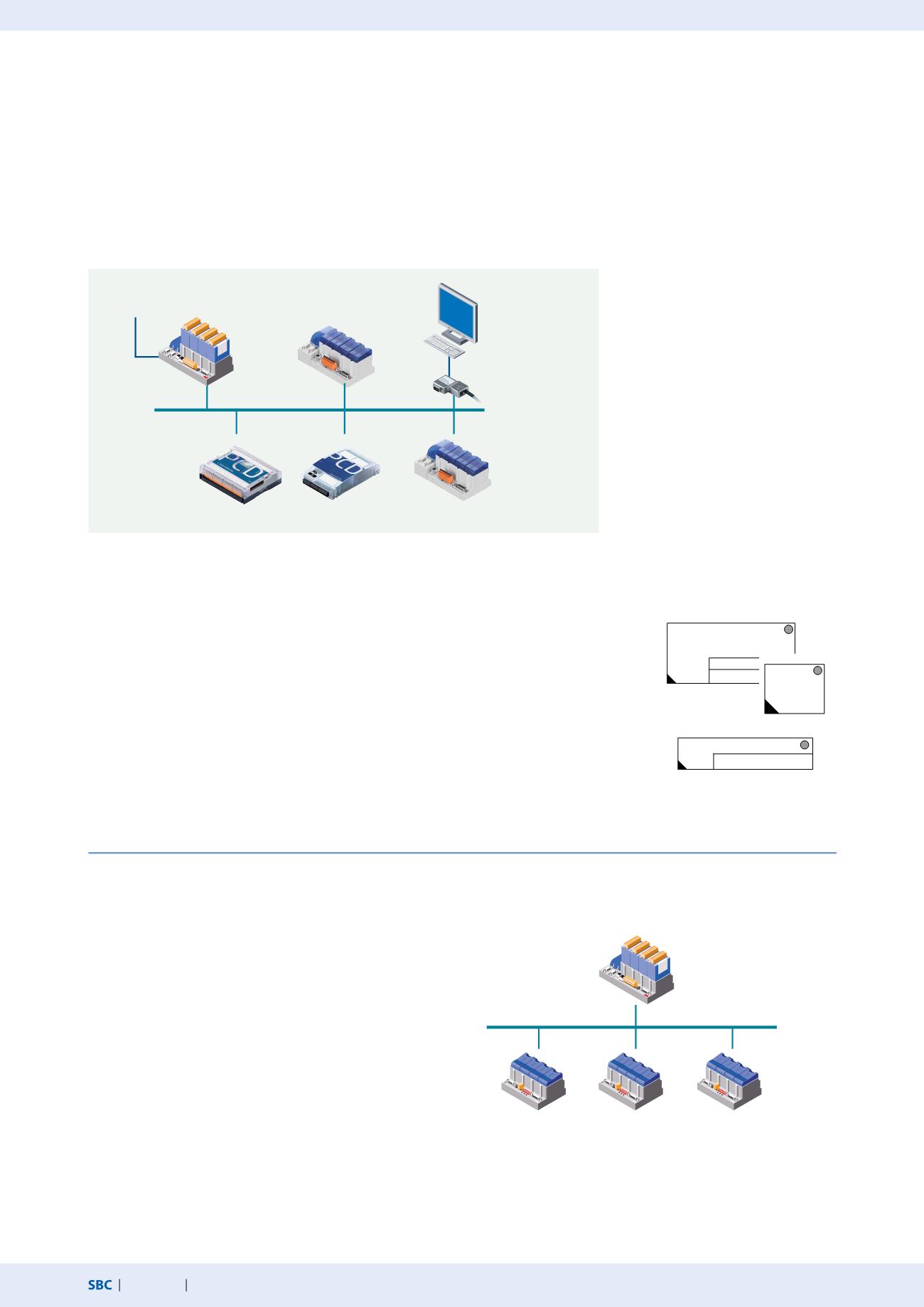

Profi S-Net: S-Bus and S-IO protocols on Profibus FDL
Profi S-IO for operating PCD3.T760 RIOs on the Profibus
