E-Line system components
System properties
Short-circuit protection and constant overload limiter
Protection class II (in closed switch cabinet) -> dual
isolation
Power failure bypass up to 100 ms
LED for output voltage OK display
Stabilised and adjustable output voltage for the conductor
resistance compensation
Parallel operation possible to increase max. output current
IP20 housing for mounting on DIN rail

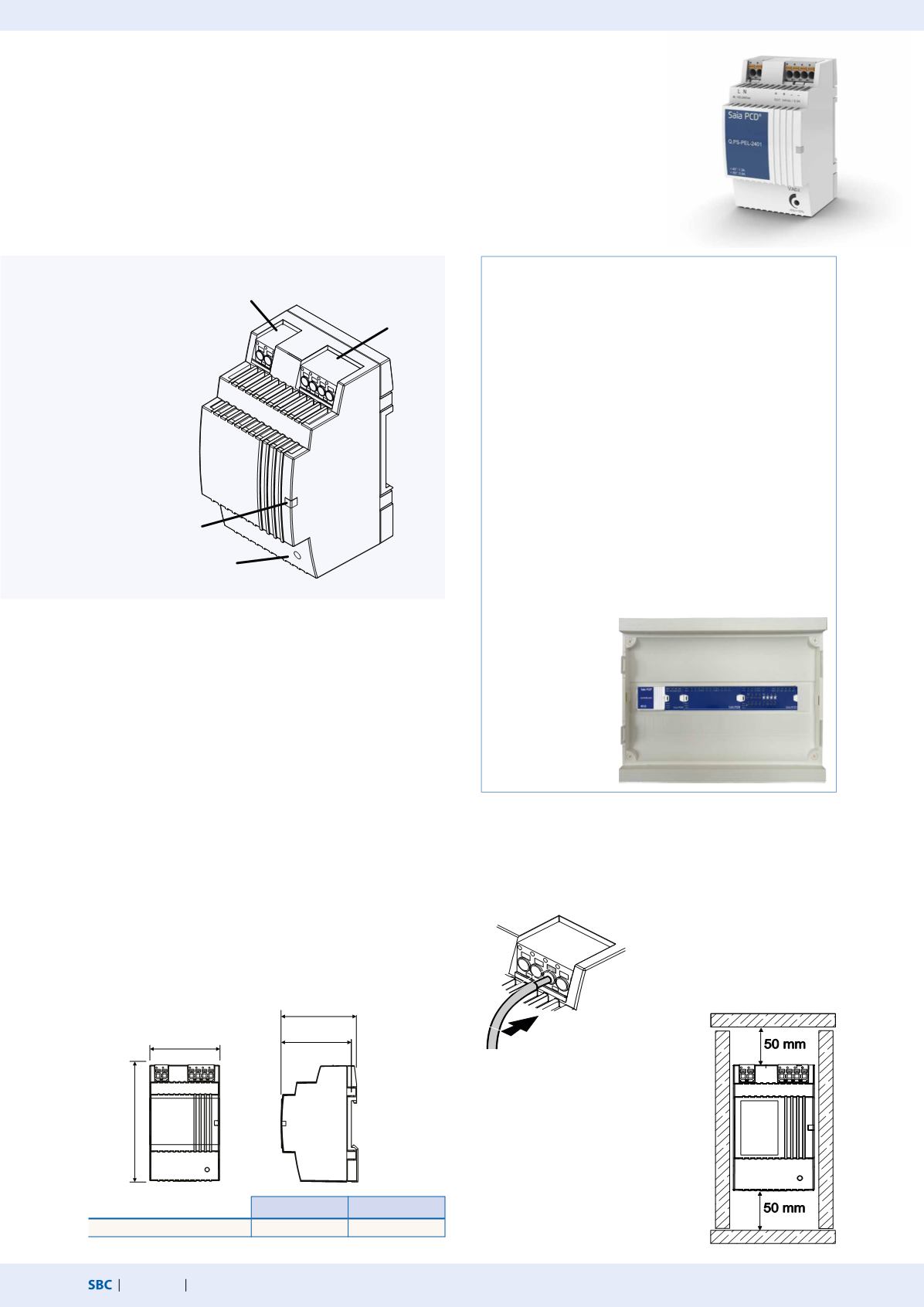

The compact Q.PS-PEL-240x power units with 24 VDC output voltage can be installed in a very restricted
space and therefore the installation in cost-effective electrical distributor boxes in accordance with
DIN 43880 is possible. They are therefore ideally suited for combining with the E-Line family. Modern
push-in terminals enable efficient and fast wiring without the use of tools.
Mounting in the sub-distributor
The design of the Q.PS-PEL2-40x power units complies with
the required standard dimensions according to DIN43880.
The power units can therefore be easily integrated in
electrical distribution boxes and are ideally suited to supply
the components of the E-Line family with voltage
Input terminals
Output terminals
Output voltage
OK LED
Setting of the
output voltage
Power unit overview
Single phase 110/230 VAC
Q.PS-PEL-2401: 24 VDC / up to 1.3 A
Q.PS-PEL-2403: 24 VDC / up to 4.0 A
Standards and certifications
Compliant certifications
CE
DNV GL (shipping approval)
UL (cURus, cULus)
EAC
EMC
EN61204-3
Immunity pursuant to EN61000-6-2 (for the industrial sector)
Emitted interference in accordance with EN61000-6-4 (for the
domestic sector)
Dimensions
Model
Q.PS-PEL-2401 Q.PS-PEL-2403
Width (W)
54 mm
90 mm
Terminal technology
Push-in terminals for efficient and fast wiring without tools
for single wire conductors with a cross section of up to
2.5 mm² or fine wire ferrules up to 1.5 mm². However fine wire
conductors up to 2.5 mm² can also
be connected directly by simply
applying pressure (screwdriver).
Installation information
Distance to adjacent parts:
Right/left:
no minimum distance
required
Top/bottom: min. 50 mm
Electrical safety
EN61558
EN60950 (SELV)
Power units for installation in electrical distributor boxes
