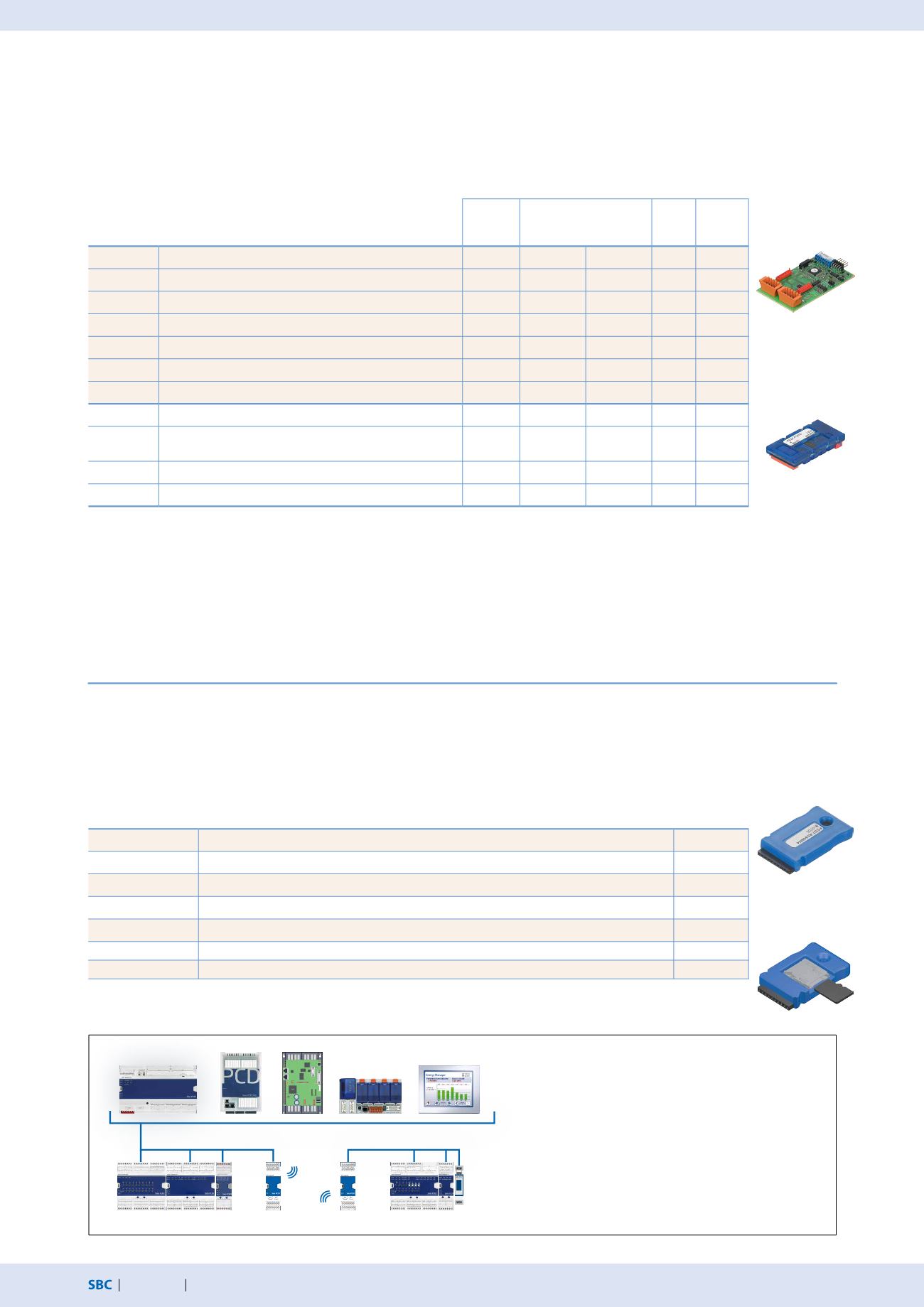

PCD
1
E-Line
PCD7.R55xM04
PCD7.R610
Automation stations –
E-Line
Communication
Electrical
isolation
Internal current con-
sumption 5V +V (24 V) Slot
I/O
connector
type
1)
PCD2.F2100
RS-422/RS-485 plus PCD7.F1xxS as option
---
110 mA
–
IO 0/1
2× K
PCD2.F2150
BACnet® MS/TP RS-485 plus PCD7.F1xxS as an option
---
110 mA
–
IO 0/1
2× K
PCD2.F2210
RS-232 plus PCD7.F1xxS as an option
---
90 Ma
–
IO 0/1
2× K
PCD2.F2400
L
on
W
orks
® interface module
---
90 Ma
–
IO 0/1 L9
PCD2.F2610
DALI Master for up to 64 DALI devices
---
90 Ma
–
IO 0/1
L
PCD2.F27x0
M-Bus master with 2 M-Bus interfaces
---
70 mA
8 mA IO 0/1
L
PCD2.F2810
Belimo MP-Bus plus PCD7.F1xxS as an option
---
90 Ma
15 mA IO 0/1
2× K
PCD7.F110S
RS-485/RS-422
---
40 mA
–
Slot A
2)
PCD7.F121S
RS-232 with RTC/CTS, DTR/DSR, DCD
suitable for modem, EIB connection
---
15 mA
–
Slot A
2)
PCD7.F150S
RS-485 with termination resistors that can be activated
●
130 mA
–
Slot A
2)
PCD7.F180S
Belimo MP-Bus, for connecting up to 8 drives on one line
---
15 mA 15 mA Slot A
2)
1)
Plug-in I/O terminal blocks are included with I/O modules. Spare terminals, ribbon connectors with system cables and separate terminals are
ordered as accessories.
2)
On slot A of the PCD2 communication cards PCD2.Fxxxx.
In addition to the onboard interfaces, the interface functions can also be expanded in a modular way using the various
slots. Numerous protocols are therefore supported by the Saia PCD1.M2220-C15. Detailed information and an overview
is contained in the Chapter BA communication systems.
PCD1.M2220-C15 interface options
System properties of PCD2.F2xxx modules
The following points must be noted when using the PCD2.F2xxx interface modules:
Max. 2 modules PCD2.F2xxx (4 interfaces) can be used in slots I/O 0/1 per PCD1.M2220-C15.
Memory expansion and communication
PCD7.R550M04
Flash memory module with a 4 MB file system (for user program backup, web pages, etc.)
M1
PCD7.R560
Flash memory module for BACnet® firmware
M1
PCD7.R562
Flash memory module for BACnet® firmware with 128 MB file system
M1
PCD7.R580
Flash memory module for L
on
IP firmware
M1
PCD7.R582
Flash memory module for L
on
IP firmware with 128 MB file system
M1
PCD7.R610
Basic module for Micro SD flash card
M1
PCD7.R-MSD1024
Micro SD flash card 1024 MB, PCD formatted
PCD7.R610
The onboard memory of the E-Line CPU can be expanded using a Saia PCD7.Rxxx module in slot M1.
In addition, the controller can be expanded with BACnet® IP or L
on
IP.
Additional information about the memory management and structure is contained in the chapter Saia PCD® System
Description.
Memory modules
The PCD1.M0/PCD1.M2 controllers and
PCD2.M5-, PCD3.M3/5/6 CPUs as well as
the programmable Micro Browser panel
PCD7.D4xxxT5F can be used as head-end
stations.
Here, the controller can process higher-level
control processes and gather, process and
visualise data and form the interface to the
control level.
System design with PCD1 E-Line modules and Saia PCD® controllers
