Automation stations –
E-Line
In addition to these libraries, a new“E-Suite*” library is
available for specific applications that can be created
with the Saia PCD1 E-Line modules.
An example for the electrical plant: Shade control,
light dimming…
Program blocks
COB
COB 0
XOB
XOB 10, 12, 13 and 16
PB/FB
100 with maximum hierarchy of 8
Data types
ROMText/DB
50
Memory
Programmemory
64 kBytes
More details on which FBoxes are supported is available on our support page
Program
Non-volatile memory (Flash memory)
The media
Volatile memory (RAM) without battery backup
Not all functions are available compared to a PCDx.Mxxxx controller. These modules do not have an automation server for exam-
ple.
Programming
The modules are programmed with Saia PG5® via a master controller or directly via Micro-USB. The modules are also equipped
with NFC. This enables additional options for commissioning and during operation.

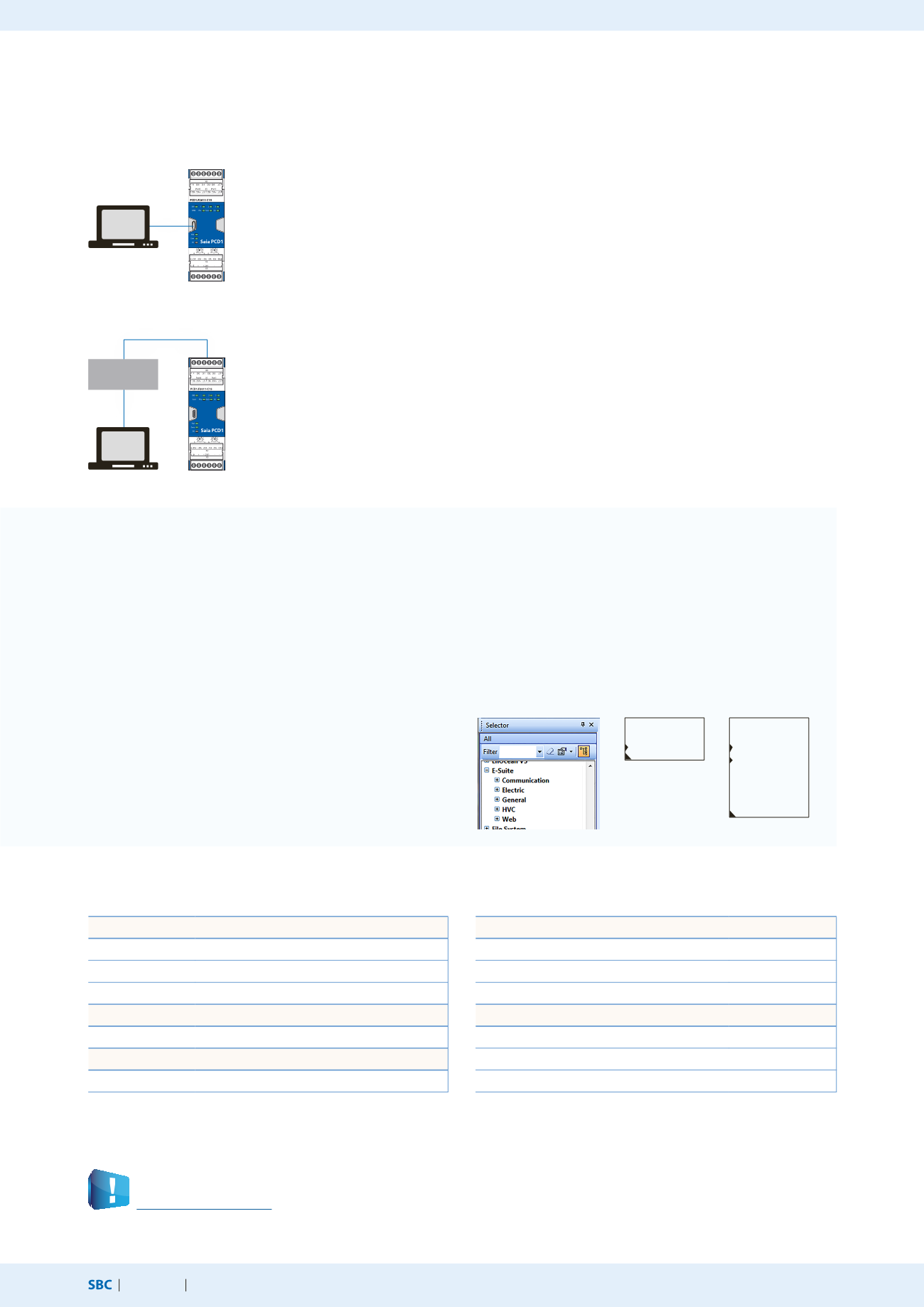

Programming direct via USB
E-Line modules have a Micro-USB connection at the front of the module. For example, the
user program for the related module or a firmware update for the module can be loaded
via the direct connection of the PC to the module via USB.
Programming via a master controller (PCDx.Mxxxx)
The master controller connected to the freely programmable E-Line modules uses the
RS-485 bus (S-Bus), to load the user program or a firmware update on the corresponding
modules.
Here the master controller is used as a gateway.
Binary
Blinker
Block Control (no SB)
Buffers
Com.Text (not interpreted)
Converter
Counter
DALI E-Line Driver (new)
Data Block
Data Buffer
EIB Driver (partly)
EnOcean (partly)
List of libraries that are supported:
The modules are programmed with Saia PG5® using Fboxes or IL. A range of FBoxes is therefore available to simplify engineer-
ing.
Flip-Flop
Floating Point (IEEE only)
HVC (partly)
Indirect
Integer
Ladder
Move In /Out
MP-Bus
Regulation (partly)
Special, sys Info (partly)
Timer
Data types
Register
2000
Flag
2000
Timer/Counter
200
Memory
Memory (RAM) for 50 Text/DB
5k Byte
Memory (EEPROM) for parameter (media) backup
256 Byte
Cyclic synchronisation with PCD controller
Real-time clock (RTC)
*
In preparation, see Chapter C1“Product status”
Controller
PCD
PG5 standard FBox libraries
