PCD1.P1001-J30
(Power Quality Analyzer)
System properties
Network analyser with 0.5% measurement
accuracy
Measurement of the 3 phases and neutral
conductor
Current measurement inputs for current
converter connection
Measurement data storage (event/cyclic)
in internal memory
1.9 inch LCD
Electrically isolated measuring inputs
Temperature measuring input
Electrically isolated RS-485 interface for
S-Bus/Modbus (switchable)
105 mm wide DIN rail devices (6 modules)

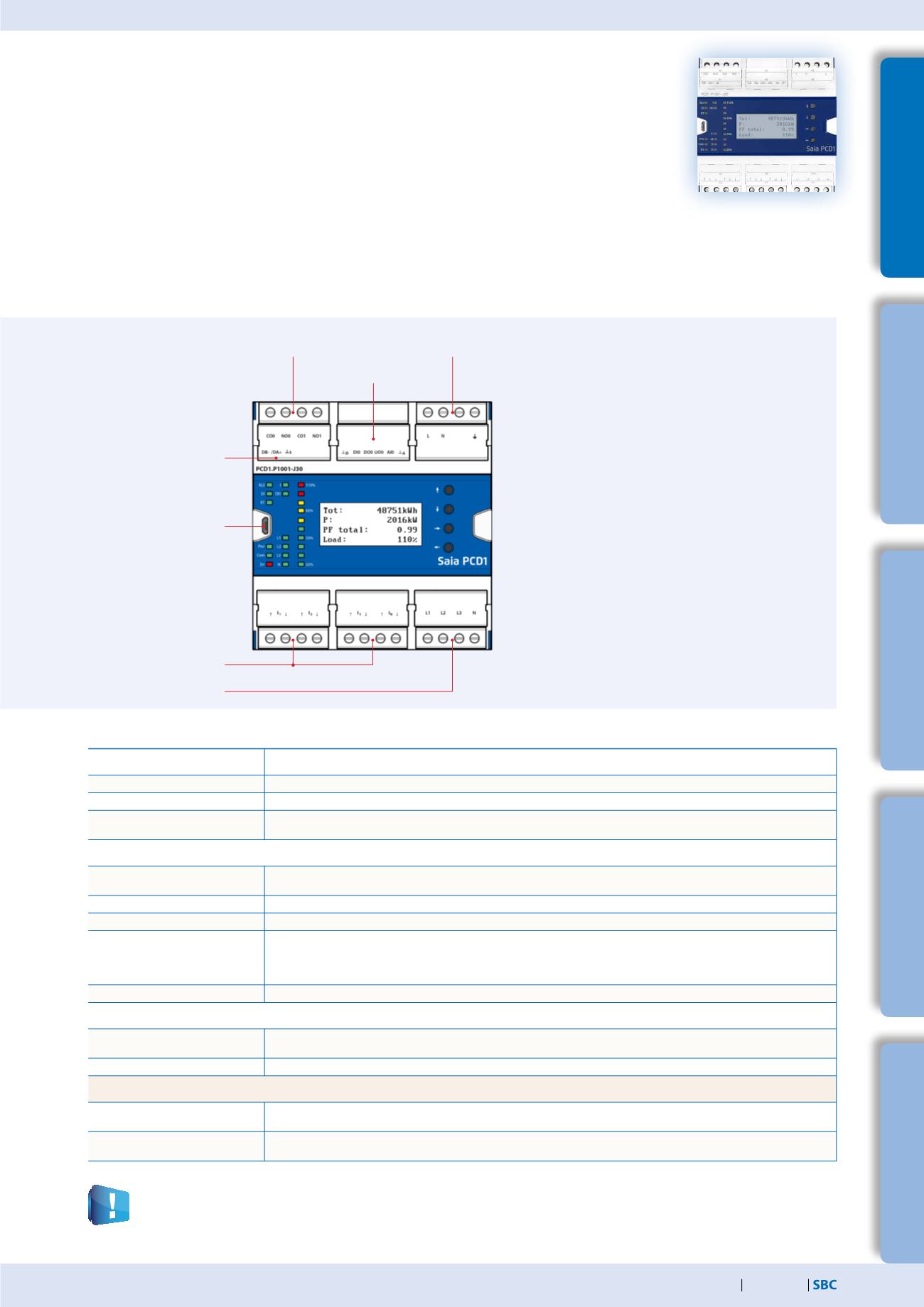

Device design
RS-485 interface
Voltage measuring inputs
Current measuring inputs
USB port
Supply
110–230 VAC
The Power Quality Analyser (PQA) is a device to measure and check the quality of the power supply and
is manufactured as an industrial grade DIN rail device. The compact E-Line design enables installation
in restricted spaces in electrical distributor boxes. The extensive measurement options enable an
analysis of any disturbances with cyclic/event-oriented data capture and automatic messaging if
a measured variable is outside the tolerance limits. The integrated RS-485 interface is available in the S-Bus/Modbus and enables
communication with a Saia PCD® controller or other master devices. Programming is also very efficient and fast using a comprehensive
FBox library with web templates.
1 digital input
1 digital output
1 analogue input
(PT1000/NI1000)
2 normally
open relays
Power supply
Supply voltage
110–230 VAC, +15% –20%, 50/60 Hz
Electrically isolated
4,000 VAC between power supply and RS-485
Power consumption
Max.: 6 W
typically: 1.5 W
Interface
Communications interface
RS-485 with electrical isolation
Baud rate: 4,800, 9,600, 19,200, 38,400, 57,600, 115,200 bps
Bus protocol
S-Bus or Modbus interface: Selectable via LCD
Configuration
Parity: Selectable via LCD
Address
Address range:
S-Bus:
0 … 255
Modbus:
1 … 253
Selectable via LCD
Terminating resistor
Integrated, can be activated via the display and interface
General data
Ambient temperature
Operation:
–25°C … +55°C
Storage:
–30°C … +70°C
Mounting type
Top-hat rail pursuant to DIN EN 60715 TH35 (1 × 35 mm)
Measurement accuracy
Active energy/power
Resistive load:
± 0.5% (5 A CT); ± 1.0% (1 A CT)
Inductive load: ± 0.6% (5 A CT); ± 1.0% (1 A CT)
Reactive energy/power
Resistive load:
± 1.0% (5 A CT); ± 1.0% (1 A CT)
Inductive load: ± 1.0% (5 A CT); ± 1.0% (1 A CT)
General technical data
