PCD7.D410VTCF
PCD7.D412DTPF
PCD7.D450WTPF
PCD7.D457VTCF
49 5
PCD7.D470WTPF
Operation and monitoring
5
Switch cabinet
components
4
Consumer
data acquisition
3
Dedicated
room controllers
2
Operation
and monitoring
1
Automation
stations

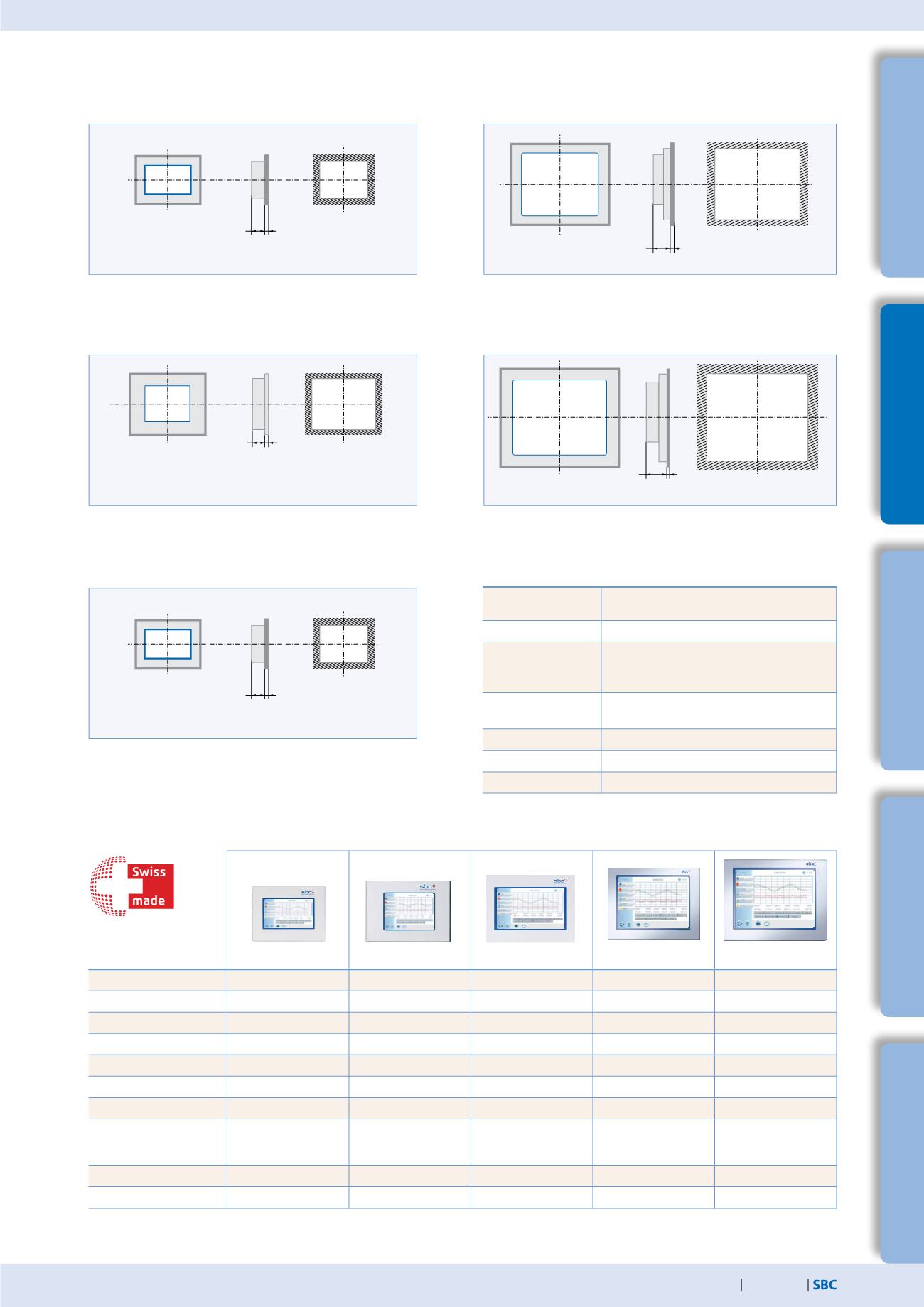

Technical Data
PCD7.D450WTPF
PCD7.D457VTCF
PCD7.D470WTPF
PCD7.D410VTCF
PCD7.D412DTPF
Display size
5.0" TFT
5.7" TFT
7.0" TFT
10.4" TFT
12.1" TFT
Resolution (pixels)
WVGA 800×480
VGA 640×480
WVGA 800×480
VGA 640×480
SVGA 800×600
Touch screen
Resistive touch screen Resistive touch screen Resistive touch screen Resistive touch screen Resistive touch screen
Background lighting
LED
LED
LED
LED
LED
Colours:
65,536
65,536
65,536
65,536
65,536
Onboard file system
128 MB
4 MB
128 MB
4 MB
128 MB
Processor
240 MHz
66 MHz
240 MHz
66 MHz
240 MHz
Interfaces
USB 1.1/2.0 Device
Ethernet 10/100 M
RS-232, RS-485
USB 1.1 Device
Ethernet 10/100 M
USB 1.1/2.0 Device
Ethernet 10/100 M
RS-232, RS-485
USB 1.1 Device
Ethernet 10/100 M
USB 1.1/2.0 Device
Ethernet 10/100 M
Current requirements
approx. 350 mA
approx. 500 mA
approx. 400 mA
approx. 500 mA
approx. 600 mA
Real-time clock (RTC)
Yes (Supercap)
No
Yes (Supercap)
No
Yes (Supercap)
Dimensions (W × H × D) and cut-out (W × H) mm
Front panel
W × H, 202 × 156
Display 5.7" W × H, 117 × 88
Cut-out W × H, 189 × 142
Front panel
W × H, 319 × 264
Display 12.1" W × H, 245 × 185
Cut-out W × H, 300 × 244
Front panel
W × H, 281 × 221
Display 10.4" W × H, 211 × 150
Cut-out W × H, 262 × 202
Front panel
W × H, 166 × 126
Display 5.0" W × H, 109.4 × 66.2
Cut-out W × H, 157 × 117
General specifications
Operating system
Saia
PCD® COSinus with microbrowser expansion
Protection type (front)
IP 65
Temperature range
Operation 0… +50°C
(7.0“
–25 … +70°C)
Storage –25… +70°C
Humidity
Operation 10 … 80%
Storage
10 … 80% non-condensing
Contrast adjustment
Yes
FTP server
Yes
Supply voltage
24 VDC ±20%
Front panel
W × H, 204 × 157
Display 7.0"
W × H, 152 × 91.44
Cut-out W × H, 189 × 142
