81
saia-pcd.com
PCD
1
E-Line
Automation stations –
E-Line
5
Switch cabinet
components
4
Consumer
data acquisition
3
Dedicated
room controllers
2
Operation
and monitoring
1
Automation
stations
Memory and file system
Types:
PCD1.M2220-C15
Programmemory, DB/Text (Flash)
512 kByte
User memory, DB/Text (RAM)
128 kByte
Onboard user flash file system
128 MB
Integrated communication
Ethernet connection (2-port switch)
10/100 Mbit/s, full-duplex, auto-sensing, auto-crossing
Yes
Service interface:
Micro USB, NFC (near field communication)
Yes
RS-485
, up to 115 kbit/s
Yes

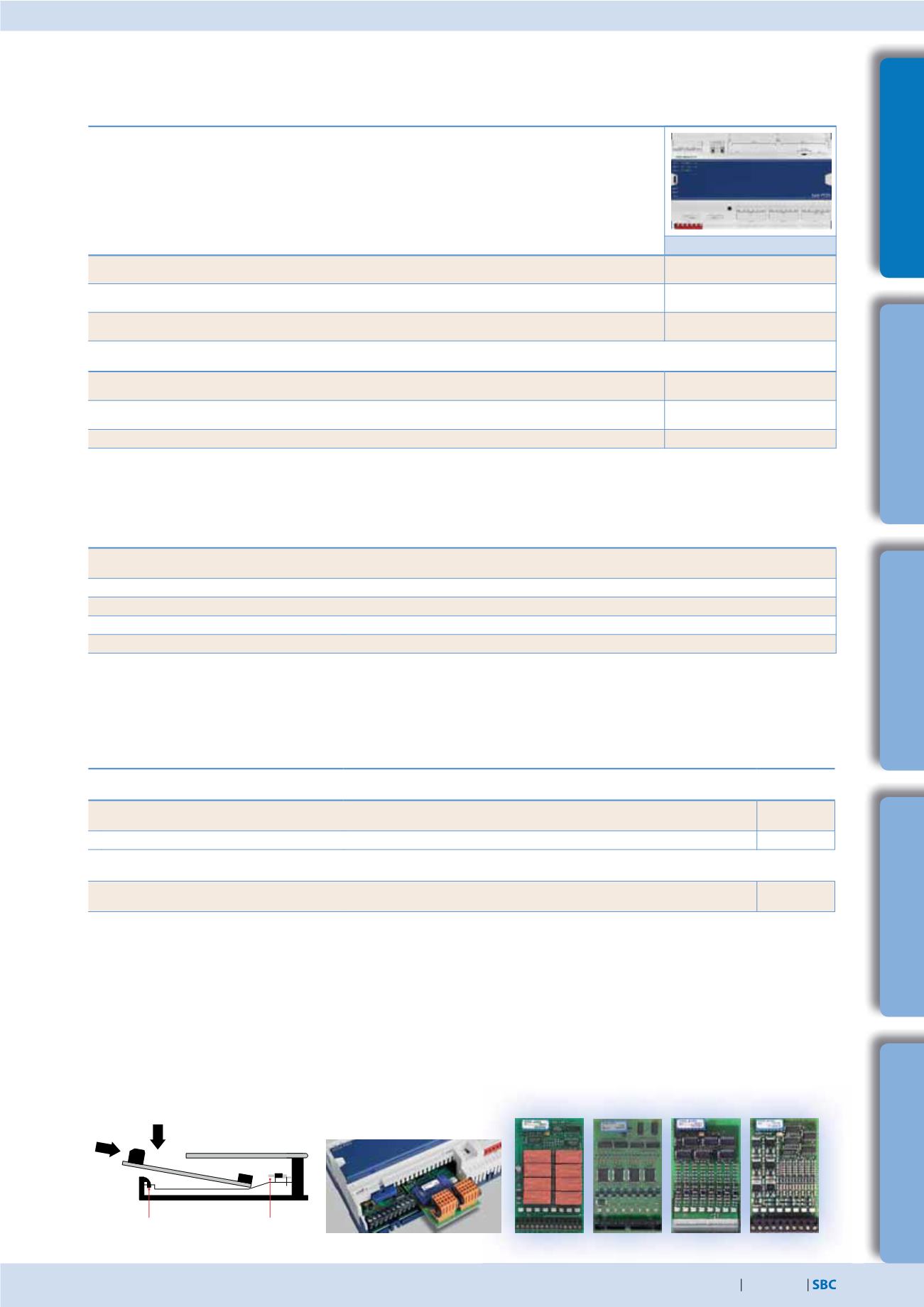

Overview Saia PCD1.M2220-C15
Onboard inputs/outputs
Inputs:
4 Digital inputs
24 VAC / VDC source operation (positive switching) or sink operation
Terminal
X14 + X18
2 Analogue inputs, selectable via DIP switch –10…+10 VDC, Pt1000, Ni1000, Ni1000 L&S, 0…2.5 kΩ, 12 bit resolution
Terminal X10
Outputs:
1 Watchdog relay or change-over contakt
48 VAC or VDC, 1 A
With DC switching voltage a free-wheeling diode should be connected in parallel to the load
Terminal X18
General specifications
Operating voltage
Nominal 24 VAC (50 Hz) or DC, 24 VDC, -20/+25% incl. 5% ripple,
24 VAC, -15%/+15% (in accordance with EN/IEC 61131-2)
Operating temperature:
0…55°C
Dimensions (W × H × D)
175 × 110 × 62 mm
Mounting location
2 × DIN rails in accordance with DIN EN60715 TH35 (2 × 35 mm) or on a flat surface
Power consumption
typically 6.5 W
Plug-in I/O modules for slots I/O 0 and I/O 1
The modules listed in the PCD2.M4 and PCD2.M5 series (Chapter 1.4) are also used for the E-Line CPUs.
Detent latch
Bus connector
I/O 1 I/O 0
Technical data
