PCD1.M2xx0
PCD3.F261
PCD2.F2610
PCD1.F2611-C15
Communication & Interaction
2.6.7
DALI
field bus module for lighting systems
Please observe the information for the PCD firmware version and the PG5 version on the support page.

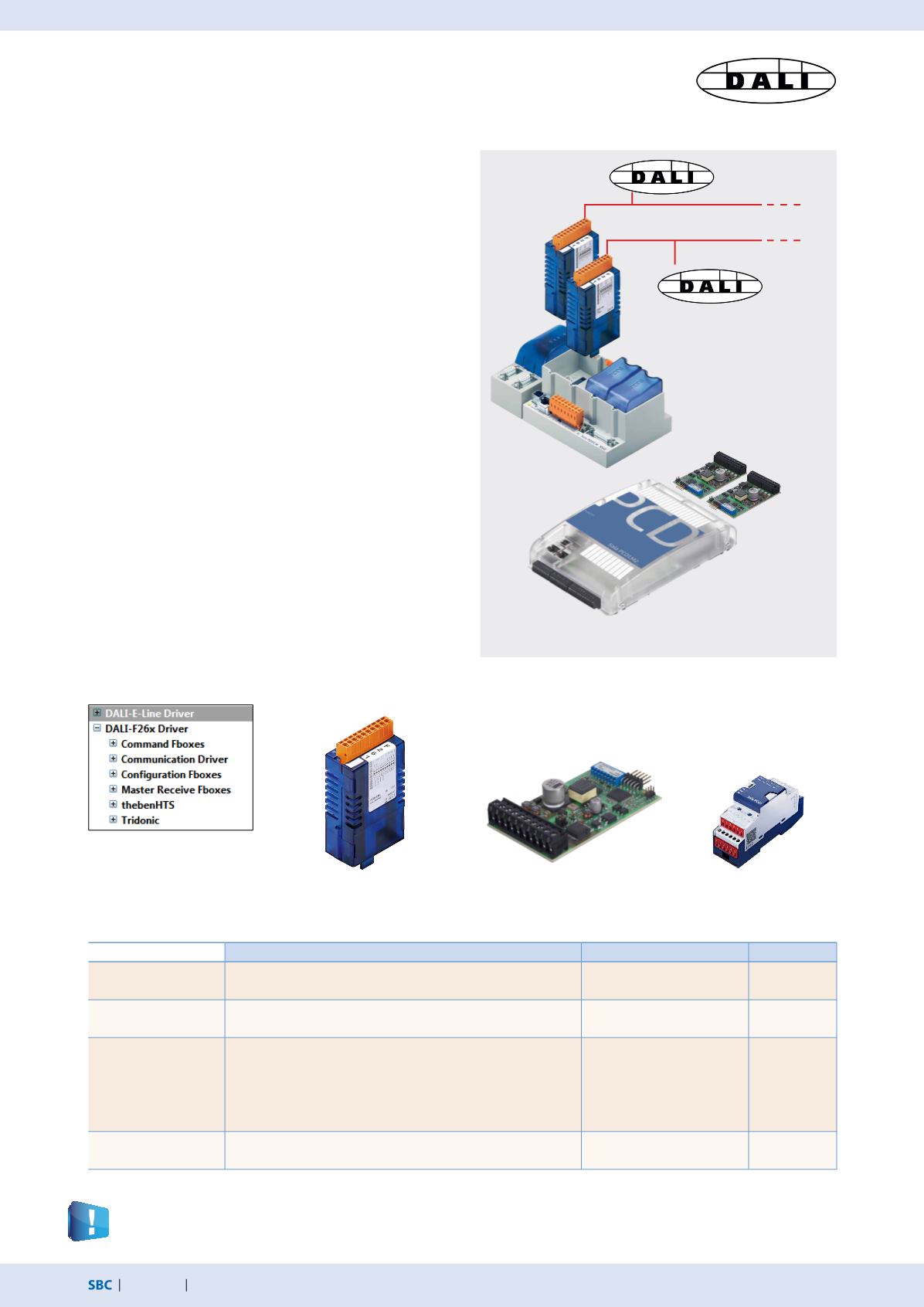

DALI master interface module
DALI is a communication system for lighting control, standard-
ised in accordance with IEC 62386-101/102. Installation is easy.
The DALI Bus simply needs 2 unshielded wires which can be
threaded through the same cable along with the power supply,
generally 230 V.
The light parameters are standardised. All upstream devices
therefore have the same parameters for dimming, grouping and
scenes, irrespective of the type of lighting.
The DALI master module includes the Bus power supply for up
to 64 DALI participants. The extensive PG5 FBox library has func-
tion modules for commissioning, operating and servicing with
the PLC program. External software tools or other components
are not required.
Smaller DALI controls can be implemented with the
PCD1.F2611-C15 E-Line DALI module. Detailed information
about this small controller can be found in the E-Line chapter.
Order details
Type
Description
Application note
Weight
PG5–DALI F26x
PG5–DALI communication library
for connecting DALI lighting control systems
–
–
PCD3.F261
DALI master interface for up to 64 DALI participants incl. bus
power supply (200 mA/12…13.5 V)
PCD3.Mxxx0: I/O slot 0-3
PCD3.T666: I/O slot 0-3
80 g
PCD2.F2610
DALI master interface for up to 64 DALI participants incl. bus
power supply (200 mA/12…13.5 V)
PCD1.M2110R1: I/O slot 0
PCD1.M2xx0: I/O slot 0-1
PCD2.M4160: I/O slot 0-1
PCD2.M4560: I/O slot 0-3
PCD2.M5xx0: I/O slot 0-3
60 g
PCD1.F2611-C15
DALI master interface for up to 64 DALI participants incl. bus
power supply (200 mA/13…15.5 V)
–
130 g
PG5–DALI F26x FBox library
Incl. DALI Bus
Power supply
