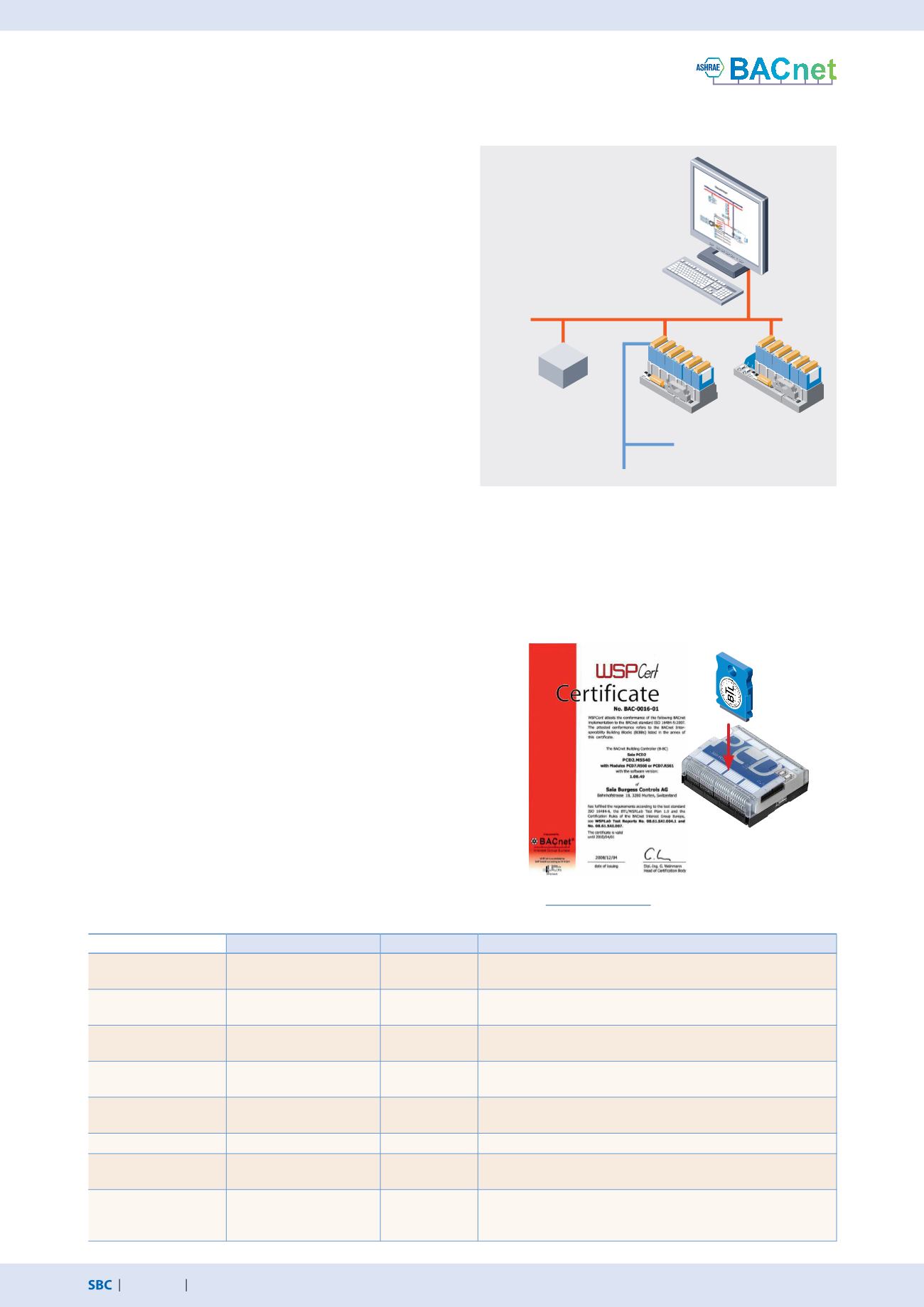

PCD2.M5
BACnet MS/TP
BACnet®/IP
PCD3
PCD3
Communication & Interaction
2.6
BA communication systems
2.6.1
BACnet®
Recommendations/system limits
Type
Option
Interface
PG5 configuration, system limits
PCD3.M5560
1× PCD7.R56x
4× PCD3.F215
IP
MS/TP
Recommended for configurations of up to 1000 BACnet objects
Suitable for BACnet® and L
on
W
orks
® in parallel operation
PCD3.M5540
PCD3.M5340/M5360
1× PCD7.R56x
4× PCD3.F215
IP
MS/TP
Recommended for configurations of up to 800 BACnet objects
PCD3.M3330/M3360
PCD3.M3120/M3160
1× PCD3.R56x
3× PCD3.F215
IP
MS/TP
Recommended for configurations of up to 500 BACnet objects
PCD2.M4160
1× PCD7.R56x
2× PCD2.F2150
IP
MS/TP
Recommended for configurations of up to 800 BACnet objects
PCD2.M4560
PCD2.M5540
1× PCD7.R56x
4× PCD2.F2150
IP
MS/TP
Recommended for configurations of up to 800 BACnet objects
PCD1.M0160
1× PCD7.R56x
IP
Recommended for configurations of up to 800 BACnet objects
PCD1.M2xx0
PCD1.M2220-C15
1× PCD7.R56x
2× PCD2.F2150
IP
MS/TP
Recommended for configurations of up to 800 BACnet objects
PCD7.D457VT5F
PCD7.D410VT5F
PCD7.D412DT5F
1× PCD7.R56x
IP
Recommended for configurations of up to 250 BACnet objects
Typical applications of a BACnet infrastructure
Heating, climate and ventilation control
Room automation
Networking dispersed sites
Recording energy data
The standard for building services
BACnet is a manufacturer-independent, globally standardised
communication protocol which is well-established in building
automation systems. BACnet is particularly suitable for hetero-
geneous structures involving automation stations of various
manufacturers. The server/client architecture allows each of the
BACnet devices to exchange data with one another without hav-
ing to adjust to the parameterisation of the other devices.
BACnet is far more than a protocol for merely transferring data;
BACnet itself defines important building automation functions,
such as the recording of historic trends or the monitoring of
values against set limit values, for example. Communication
services (BIBBs, BACnet Interoperable Building Blocks), such as
those for reading and writing content, event-controlled trans-
mission following changes and the handling of alarms/informa-
tion (events) are available.
PCD systems
BACnet is available for all classic PCD systems with the Saia PCD®
COSinus operating system as a communication option. The con-
nection is usually direct via BACnet IP (Ethernet). BACnet MS/TP
(RS-485) is also possible via a communication module.
BACnet always requires a BACnet option module for firmware
expansion. A PCD7.R56x is used for memory slots M1 and M2
for PCD3.M5, PCD2.M5, PCD1.M2 and PCD1.M0 controllers. The
PCD3.R56x module is available for I/O slots 0…3 for PCD3.M3
controllers with no M1/2 slots.
PCD2.M5 and PCD1.M2 controllers also require a PCD2.F2150
for connecting BACnet MS/TP, and PCD3 controllers require a
PCD3.F215 communication interface. This module also provides
controllers with no Ethernet with a BACnet interface. Controllers
with Ethernet also take on the function of a BACnet IP MS/TP
router. External gateways for connecting MS/TP devices direct to
the management system or other BACnet IP devices, for exam-
ple, are therefore no longer required.
BACnet certificates for PCD1, PCD2, PCD3 controllers;
see
Certificates, PCD
Third party system
