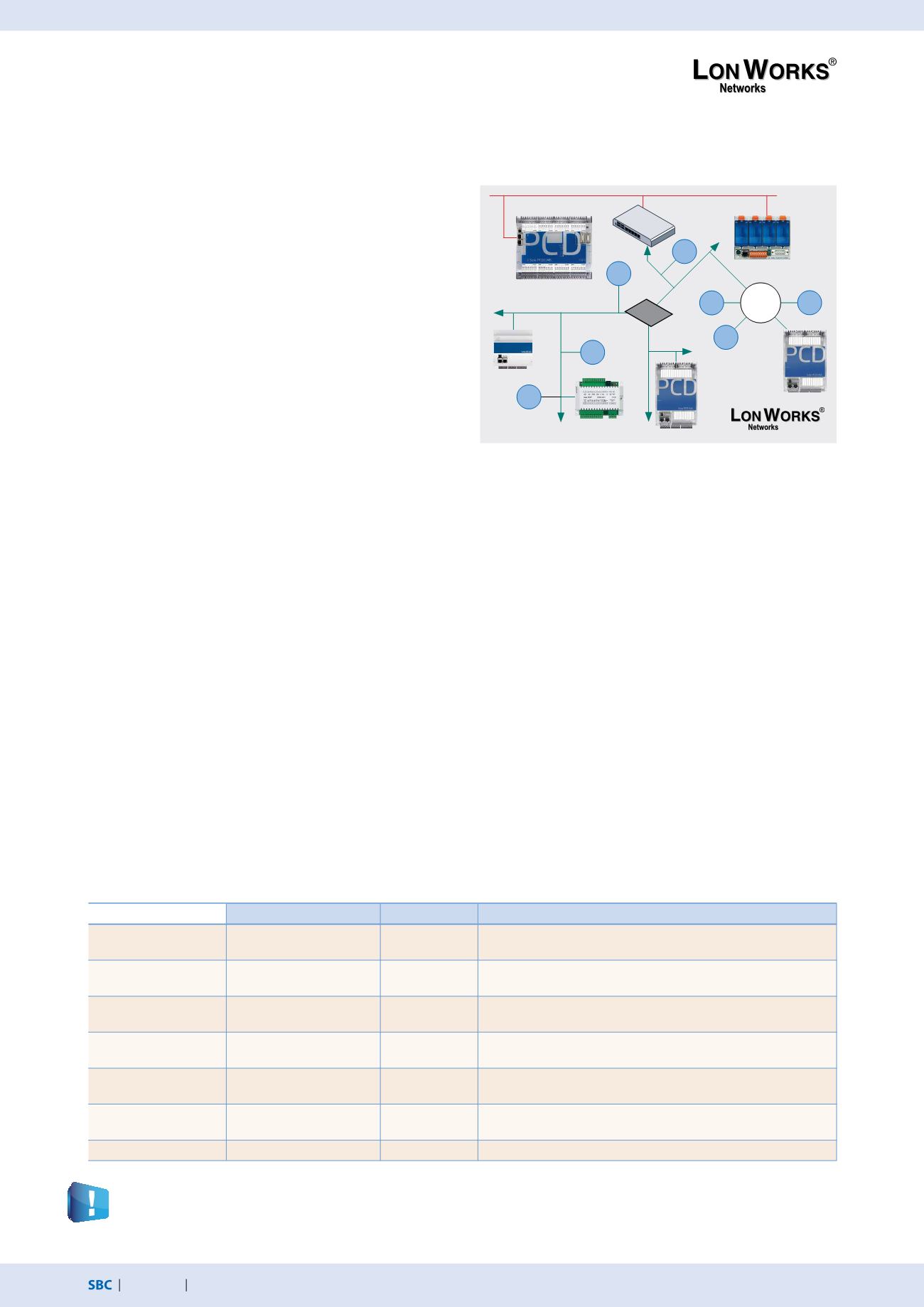

® The building automation system field bus
Recommendations/system limits
Standard Ports: #1628 and #1629
* L
on
over IP can only be used on PCD controllers with Ethernet interfaces. An external IP 852 config server is also required for commissioning and
binding.
** PCD2.F2400, PCD3.F240: 247 network variables are available to the user. 7 NVs are permanently reserved by the standard node object.
+
In preparation.
Type
Option
Interface
PG5 configuration, system limits
PCD3.M5560
1× PCD7.R58x*
4× PCD3.F240
IP852
FTT10
Recommended for configurations of up to 2000 network variables
Suitable for BACnet® and L
on
W
orks
® in parallel operation
PCD3.M5540
PCD3.M5340/M5360
+
1× PCD7.R58x*
IP852
Recommended for configurations of up to 1500 network variables
PCD3.M3330/M5560
PCD3.M3120/M3160
+
1× PCD3.R58x*
IP852
Recommended for configurations of up to 1000 network variables
PCD2.M4160
+
1× PCD7.R58x*
2× PCD2.F2400
IP852
FTT10
Recommended for configurations of up to 1500 network variables
PCD2.M4560
+
/M5540 1× PCD7.R58x*
4× PCD2.F2400
IP852
FTT10
Recommended for configurations of up to 1500 network variables
PCD1.M2xx0
PCD1.M2220-C15
+
1× PCD7.R58x*
2× PCD2.F2400
IP852
FTT10
Recommended for configurations of up to 1000 network variables
PCD1.M0160
1× PCD7.R58x*
IP852
Recommended for configurations of up to 1000 network variables
The standard for building services
L
on
W
orks
® technology is a standardised communication proto-
col which is well-established in building and industrial automa-
tion systems. Properties such as the decentralised intelligence,
modular design, requirement-based interfaces and the ability to
adjust to existing infrastructures makes L
on
W
orks
® an interesting
option for the transfer of data in the field level and for backbone
systems. The individual network participants, the “node” can
exchange event-controlled data. L
on
W
orks
® forms the platform
for manufacturer-independent communication in multi-service
building automation systems.
PCD systems
L
on
W
orks
® is available as a communications option for practically
all PCD systems. PCD classic controllers are connected to the
Saia PCD® COSinus operating system via IP 852 (Ethernet). L
on
®
FTT10 is also possible using a communication module, whereby
each module supports max. 254 network variables**. The PG5
contains a suitable Lon resource configurator for configuring
the Lon node and an FBox library for commissioning, testing,
transmitting and receiving network variables.
Configuration also takes place in the PG5, whereby configu-
rations of up to 800 network variables are permitted. A com-
prehensive Saia PG5® FBox library enables users to establish a
connection to the application program for almost every type of
standard network variable.
A L
on
optional module is always required for using the L
on
over
IP (IP 852). A PCD7.R58x is used for memory slots M1 or M2 for
PCD3.M5/M6, PCD2.M5, PCD1.M2 and PCD1.M0 controllers. The
PCD3.R58x module is available for I/O slots 0…3 for PCD3.M3
controllers with no M1/2 slots.
A “Lon communication module” is also required to connect
the Lon FTT10. This module provides PCD controllers with a
L
on
W
orks
® interface but without a router function. PCD1.M2
controllers require the PCD2.F2400 module and PCD3 control-
lers the PCD3.F240 module.
External L
on
FTT10 / IP gateways are also required to connect
FTT10 devices directly to the management system or other
L
on
IP 852 devices, for example. In place of a router, the applica-
tion program can also copy network variables on IP 852 via
PCD resources from any system.
Typical applications of a
L
on
W
orks
® infrastructure
Heating, climate and ventilation control
Light control
Shade control
Security
Energy management, etc.
PCD1.M2
with L
on
FTT10
Node
Node
Node
Node
Node
Node
Node
