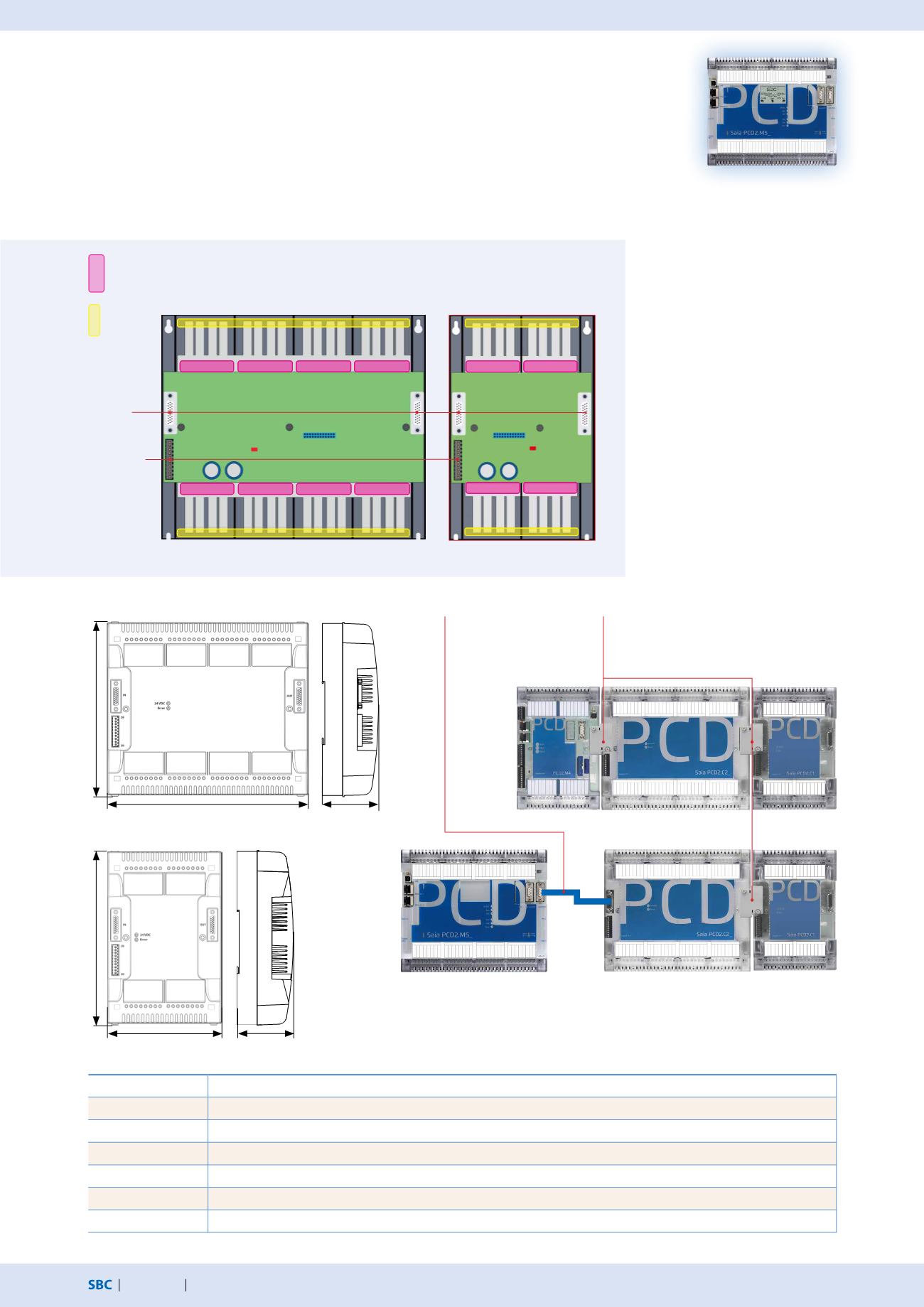

Automation stations – Saia PCD2
Saia PCD2.Cxxxx module holder
Up to 8 Saia PCD2.C1000 or Saia PCD2.C2000 module holders can be connected to the Saia PCD2.M4x60 (7
with PCD2.M5xxx). This makes it possible to connect up to 64 I/O modules or 1023 digital I/Os. A module
holder has space for 4/8 I/O modules. In addition to Saia PCD2.Cxxxx module holders, all Saia PCD3 module
holders can also be connected.
System properties
Up to 1023 central data points
Numerous module variants
can be plugged in
Mounting is quick and easy
Can be combined with Saia
PCD3.Cxxx module holders
Connections for a power supply
on each module holder
Can be connected below or next
to each other
Dimensions PCD2.C2000
Dimensions PCD2.C1000
No more than 5 extension cables may be used for this.
PCD3.Kxxx cables are required for the connection between two module holders!
8 I/O-module slots 0
…
7
Power
supply
I/O bus
4 I/O-module slots 0
…
3
PCD2.C2000
PCD2.C1000
I/O bus for
standard
modules
Ground con-
nection for I/O
modules
I/O 7
I/O 6
I/O 5
I/O 4
I/O 0
I/O 1
I/O 2
I/O 3
I/O 0
I/O 1
I/O 3
I/O 2
I/O bus extension cable
PCD2.K106
I/O bus connections
PCD2.K010
or extension cable
PCD3.K106
PCD3.K116
Saia PCD2 I/O module holder
Type
Description
PCD2.C1000
Expansion module holder with 4 I/O slots
PCD2.C2000
Expansion module holder with 8 I/O slots
PCD2.K010
I/O bus connector
PCD2.K106
I/O bus extension cable length 0.9 m (connection between PCD2.M5xxx and PCD2.Cxxxx)
PCD3.K106
I/O bus extension cable length 0.7 m (connection between two module holders)
PCD3.K116
I/O bus extension cable length 1.2 m (connection between two module holders)
