Ethernet
SCADA 1
SCADA 2
Ethernet
Ethernet
SCADA 1
SCADA 2
Ethernet
Standby CPU
PCD3.M6880
Standby CPU
PCD3.M6880
SCADA 1
SCADA 2
Standby Controller

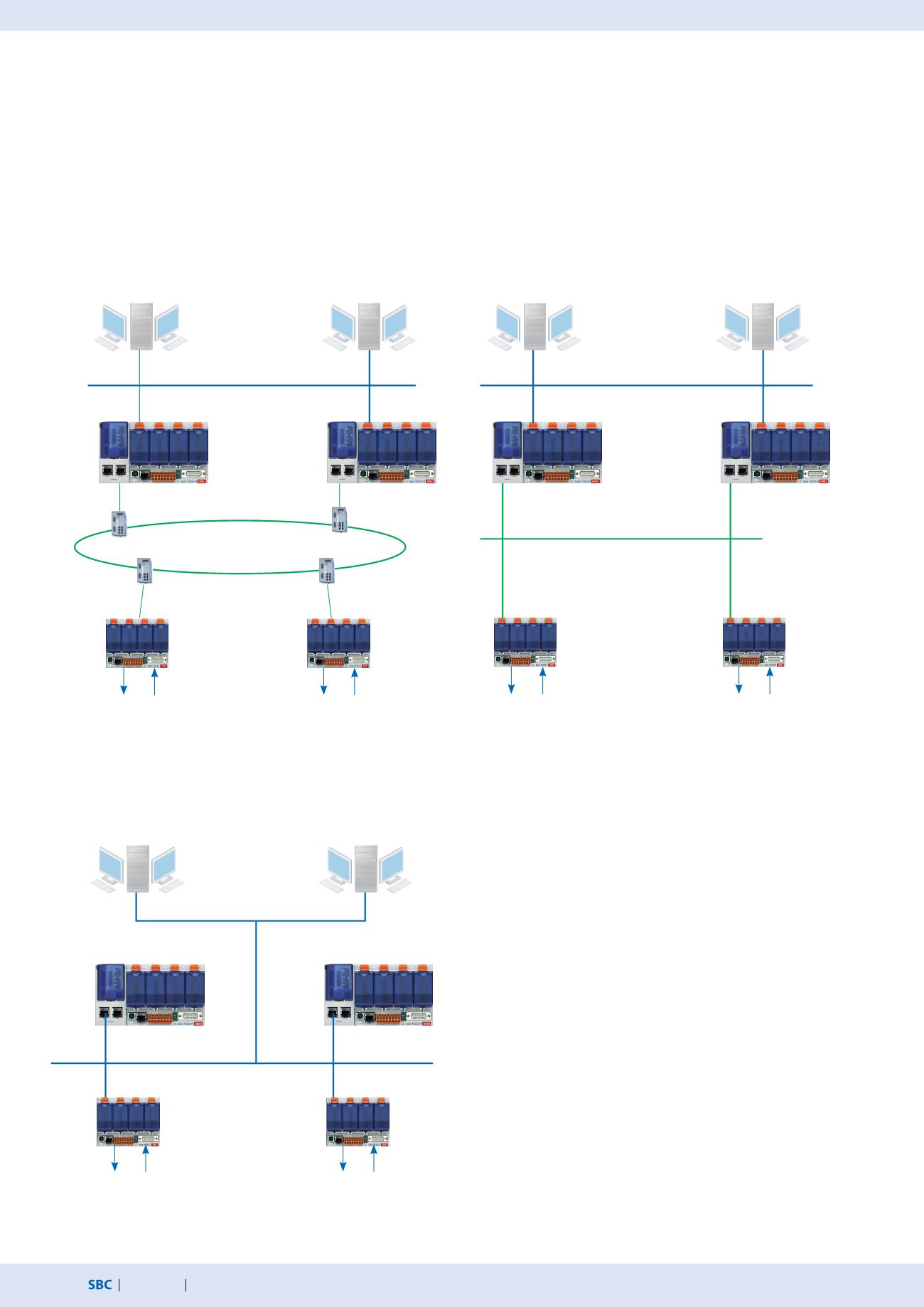

Designing the System
Redundant automation solutions can be achieved with various network topologies.
Physically separating the management network (SCADA systems) and the network for the remote I/Os is recommended. We also rec-
ommend setting up the remote I/O network in a ring structure using fibre-optic network components. This significantly increases the
performance, security and, above all, the network availability and thus the system reliability. Standard devices from third-party provid-
ers can be used for the network components (switches). We have had good experiences with the switches (RS30) from Hirschmann.
However, the networks can also be set up with standard components in a star structure. A shared physical network for the remote I/Os
and management systems is also possible, but availability of the system will be reduced accordingly.
Network redundancy
with fiber optical ring
Shared physical network in a star topology with standard components
Recommended network topology with physically separate
networks and a fibre-optic ring
Physically separate networks in a star topology with standard
components
Secondary
Primary
Secondary
Primary
Secondary
Primary
Process I/O
Process I/O
Process I/O
Process I/O
Process I/O
Process I/O
Standby Controller
PCD3.M6880
Standby Controller
PCD3.M6880
Smart RIOs
PCD3.T668
SCADA-System
SCADA-System
Smart RIOs
PCD3.T668
SCADA-System
Smart RIOs
PCD3.T668
Standby Controller
