Consumption data collection
4.5
Power Quality Analyzer PCD1.P1001-J30
System properties
Network analyser with 0.5% measurement
accuracy
Measurement of the 3 phases and neutral
conductor
Current measurement inputs for current
converter connection
Measurement data storage (event/cyclic)
in internal memory
1.9 inch LCD
Electrically isolated measuring inputs
Temperature measuring input
Electrically isolated RS-485 interface for
S-Bus/Modbus (switchable)
105 mm wide DIN rail devices (6 modules)
Device design

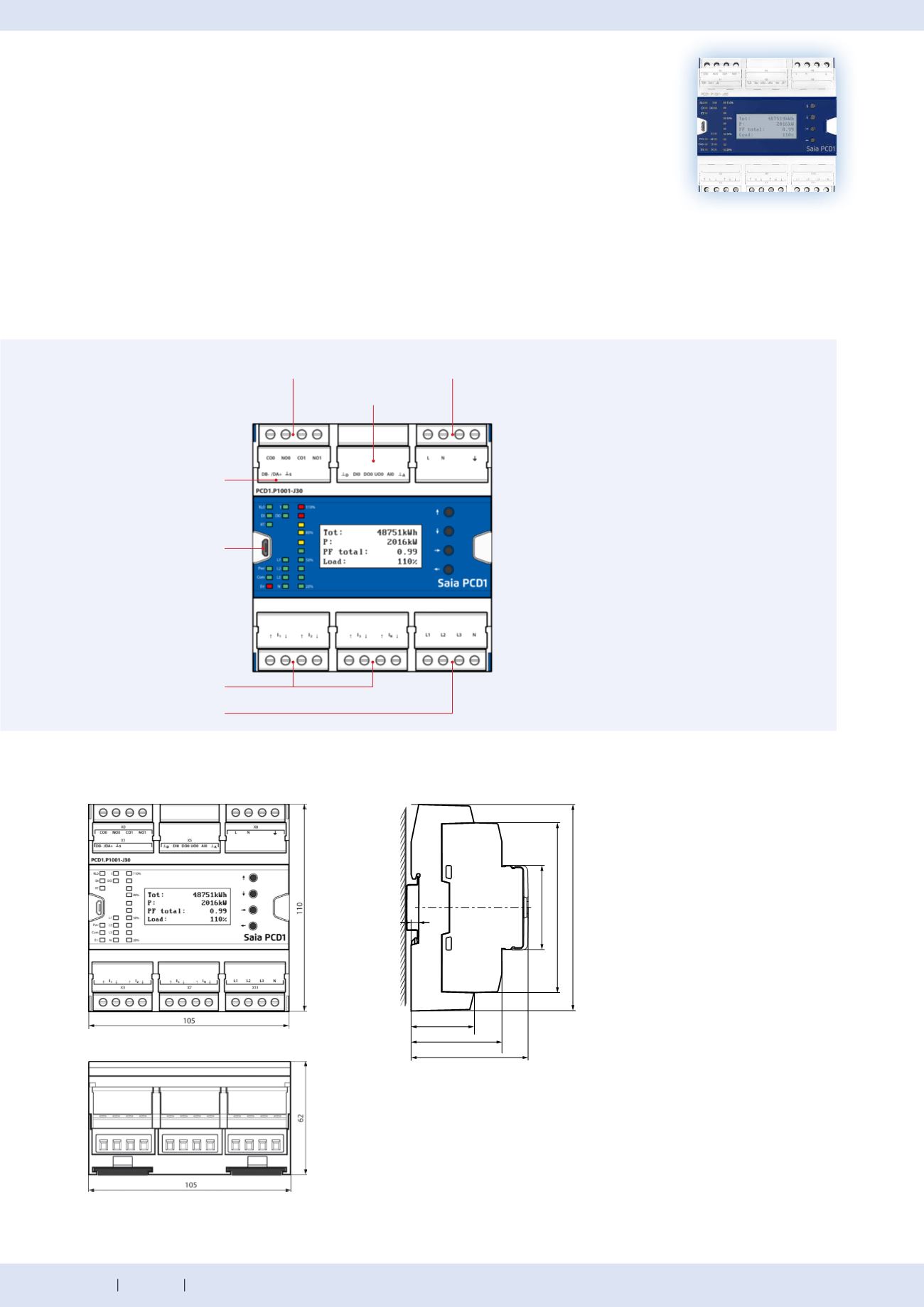

Dimensions and installation
Mounting on a 35 mm top-hat rail
(in accordance with DIN EN 60715 TH35)
RS-485 interface
Voltage measuring inputs
Current measuring inputs
USB port
Supply
110–230 VAC
The Power Quality Analyser (PQA) is a device to measure and check the quality of the power supply and
is manufactured as an industrial grade DIN rail device. The compact E-Line design enables installation
in restricted spaces in electrical distributor boxes. The extensive measurement options enable an
analysis of any disturbances with cyclic/event-oriented data capture and automatic messaging if
a measured variable is outside the tolerance limits. The integrated RS-485 interface is available in the S-Bus/Modbus and enables
communication with a Saia PCD® controller or other master devices. Programming is also very efficient and fast using a comprehensive
FBox library with web templates.
1 digital input
1 digital output
1 analogue input
(PT1000/NI1000)
2 normally
open relays
Housing width 6 modules (105 mm)
Compatible with electrical control cabinets (in accordance with DIN 43880,
size 2 × 55 mm)
