Consumption data collection
4.4.5 Energy meter with S0 pulse output
Energy meters with integrated S0 interface enable the transfer of measured energy to the devices of
the Saia PCD® family and the E-Monitor via pulses. With the S0 pulse counter PCD7.H104, the pulses can
be requested via the RS-485 interface (S-Bus or Modbus).
EMD1 ALD1 AAE1 ALE3 AWD3
EMD1
L5F1KA00
ALD1
D5F10KA3A00
ALD1
B5F10KA3A00
AAE1
D5F10KR3A00
ALE3
D5F11KC3A00
ALE3
B5F10KC3A00
AWD3
D5W10MC3A00
AWD3
B5W10MC3A00
Tariff 1 tariff       
2 tariffs – – – –  – – –
Meter type Unidirectional design   –   –  –
Bidirectional design – –  – –  – 
Approvals With MID –       
Without MID  – – – – – – –
Rated/max.
current Current
Imin = 0.05 A, IN = 5 A, Imax = 6 A – – – – – –  
Imin = 0.25 A, IN = 5 A, Imax = 32 A    – – – – –
Imin = 0.5 A, IN = 10 A, Imax = 65 A – – –    – –
Measurement type Direct measurement       – –
Conversion up to 1500 A – – – – – –  
Operating
voltage
230 VAC, 50 Hz     – – – –
3 × 230/400 VAC, 50 Hz – – – –    
S0 output 1000 Imp./kWh       – –
10 Imp./kWh – – – – – –  
Partial meter Resettable –  – –    –
Converter meter 3-phase
AWD3
Direct measurement 3-phase
ALE3
Direct measurement
single-phase ALD1
Direct measurement
single-phase AAE1

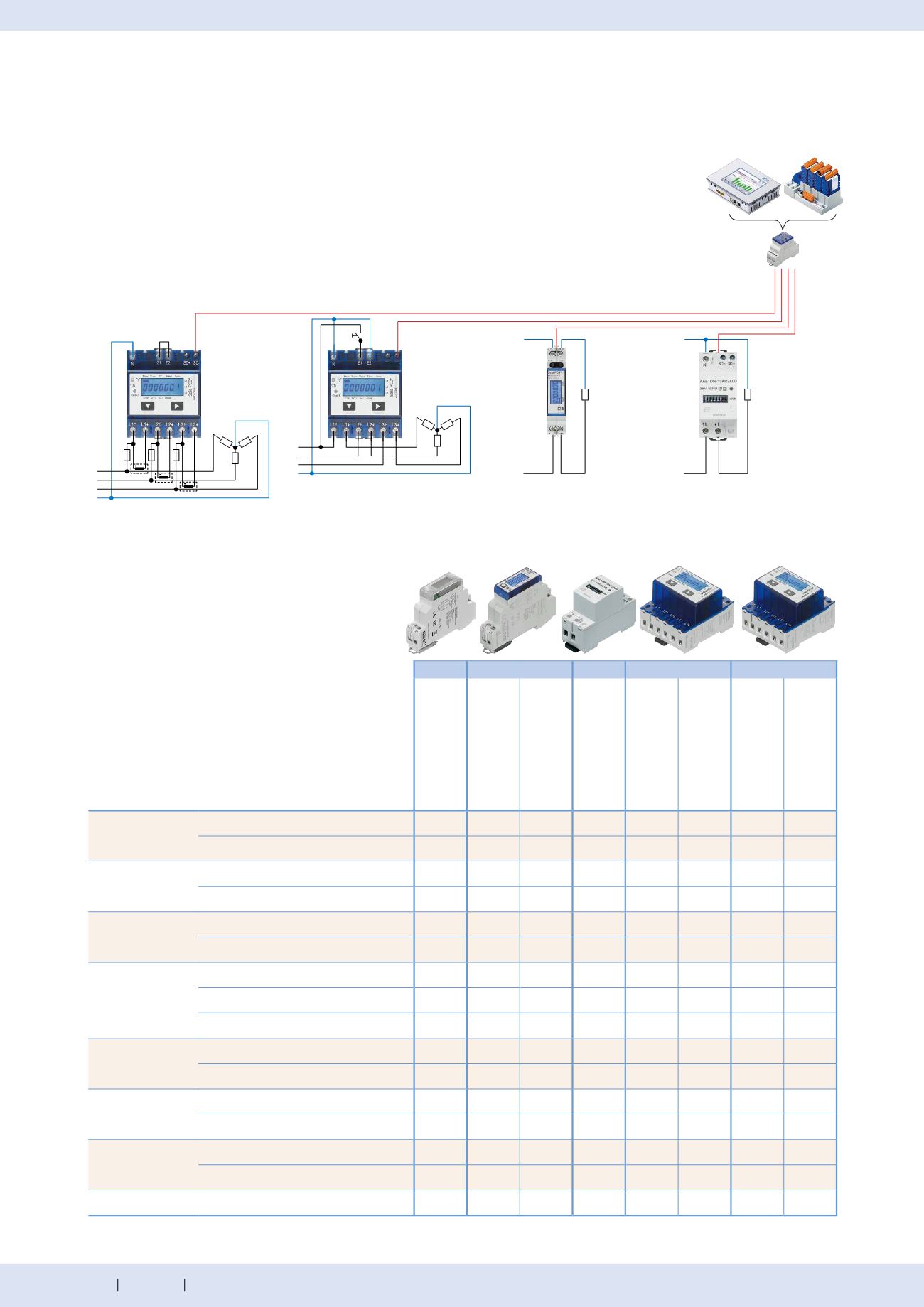

Connection diagram of S0 pulse energy meters, with
S-Bus connection via PCD7.H104SE
