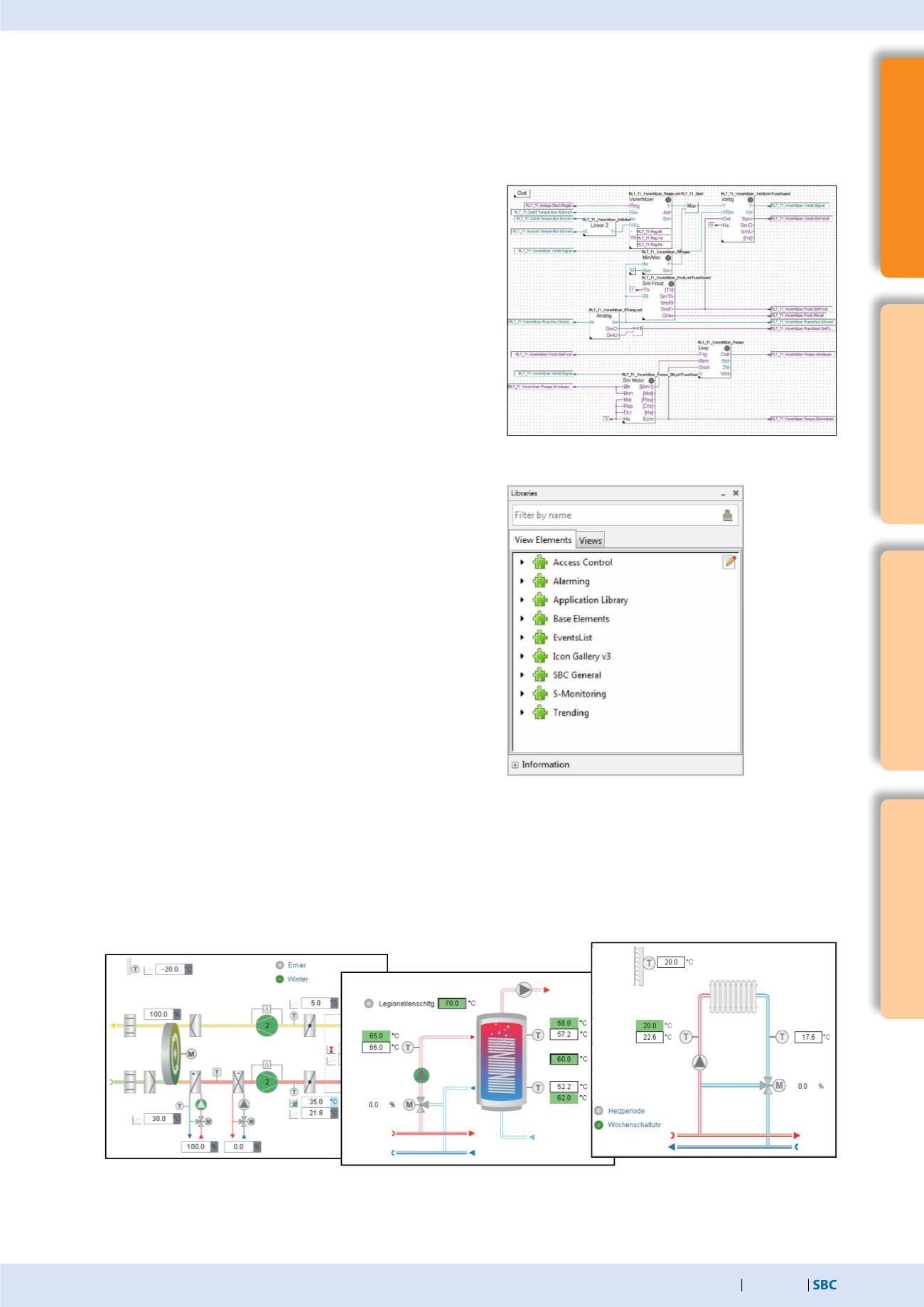

5. Templates for Fupla, Web Editor and Visi.Plus
The Saia PG5® DDC Suite largely comprises a highly integrated FBox library which is
supplemented by a growing number of ready-made, tested and ready-to-use Fupla pages which fully map the typical parts of the
system in terms of function. The Saia PG5® DDC Suite also provides the control and visualisation function for each FBox. Operation
and visualisation using the web browser or Visi.Plus is already integrated and ready for use.
Fupla templates
In order to reduce the system programming time, entire
applications (heating circuit, water heating, ventilation
systems, etc.), including the calendar and control tasks, are
fully integrated for free selection. Some suggestions for
control settings and for system control can thus be freely
added, changed or integrated.
Visi.Plus templates
When importing data from Fupla to Visi.Plus, FBoxes are identified and then handled by the Visi.Plus database as FBoxes. Not only are
the data points imported, but the alarms and historical trends are automatically created upon import. In addition, the Visi.Plus user is
provided with the same template objects as in Web Editor.
Web Editor templates
The DDC Suite is also includes template objects for S-Web
applications. Graphic and control objects are available for
every FBox. There are also S-Web system templates for
predefined systems.
All official macros can be found in the "Li-
brary" Web Editor window.
Template: Ventilation system
System display
