Switch cabinet components
5.3
Industrial VPN Routers
The EBW industrial routers allows you an easy, reliable and
secure connection of different applications located on different
sites.
Using the quick start wizard, the EBW routers can be quickly and
easily integrated in the “SBC Connectivity service”VPN network.
Theses industrial routers enable professional IP routing and
provide highest-possible IT security.
Features
`
`
Broadband 3G/HSPA
`
`
Dial-in and dial-out router
`
`
VPN security
`
`
Two local Ethernet ports
`
`
Prepared for INSYS Connectivity Service
The industrial high speed router EBW-H100 combines a modem and a router in one device. It
connects to the internet over mobile networks (3G/HSPA, GPRS/EDGE).
The dial-in and dial-out functionality enables remote maintenance and operation of devices in an
Ethernet network.
A firewall and integrated VPNs (openVPN, IPsec) care about data security.
Typical applications
`
`
Access to control network with PLC, HMI, data logger
`
`
Modem substitute for devices with Ethernet interface
`
`
Remote desktop
`
`
Video monitoring
`
`
Displays

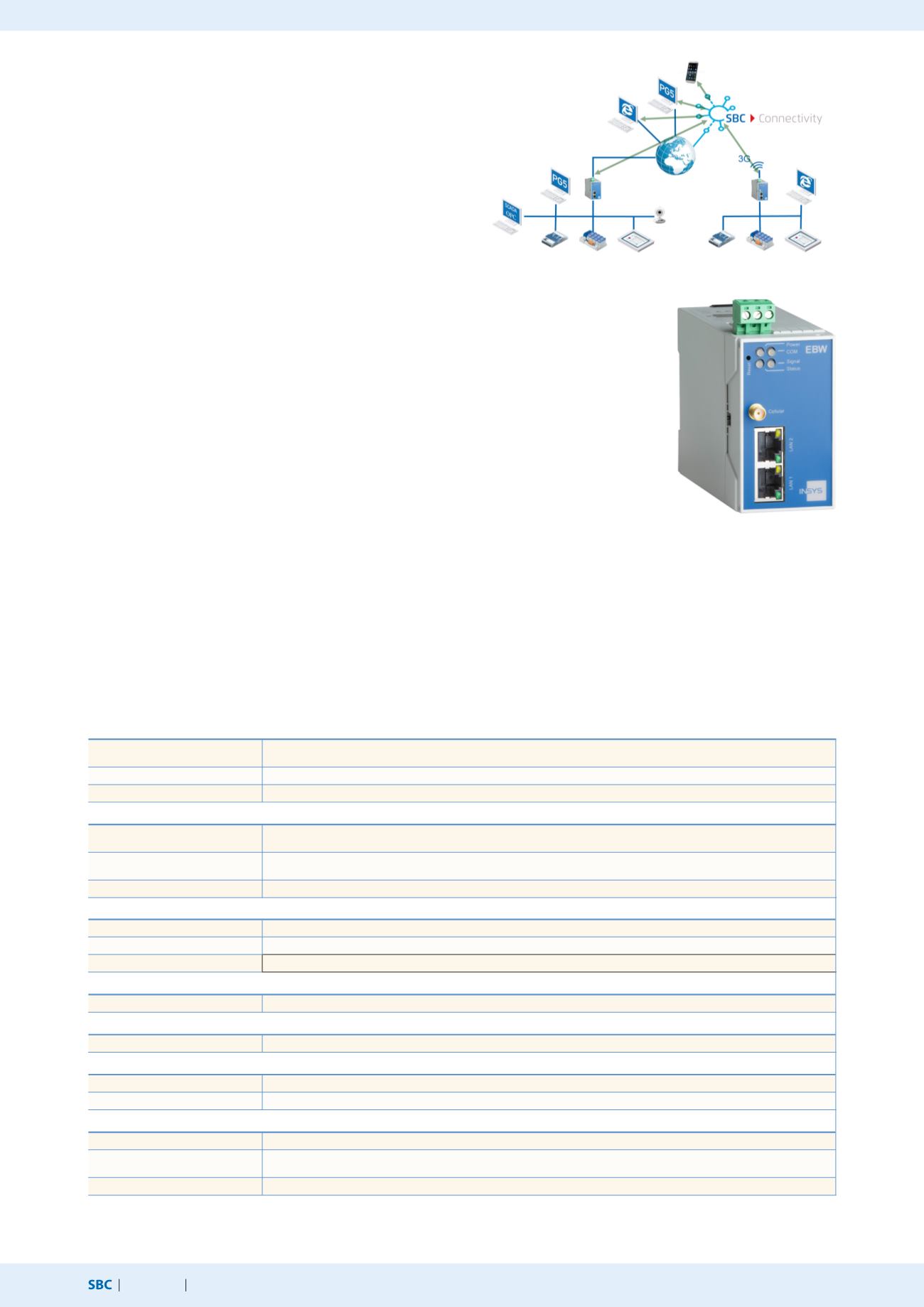

Technical data EBW-H100*
5.3.1
Industrial 3G/HSPA router for VPN connection
Physical features
Dimensions (L×W×H)
110×45×70 mm
Operating temperature
–30…+70°C
–30…+85°C under limited conditions (refer to
)
Humidity
0…95% (non-condensing)
Supply
Connections
10…48 V DC (±20%)
Input/output terminals
Approx. 2 W (logged in), max. 5 W (during communication)
Additional features
Update of firmware and configuration (local and remote), daily auto update
Messages
Hardware watchdog, system messages via e-mail, SNMP traps, SNMP V1/V2c/V3
LAN
Ports
2×RJ45
Operating mode
10/100 MBit/s for full and half duplex operation
Function
Automatic detection of patch cable / cross-over cable, Automatic speed adjustment; MDI/MDI-X
Mobile Communication
Networks
2G: 900/1800 MHz; CSD, GPRS/EDGE Class 12
3G: 850/800, 900, 1900, 2100 MHz; UMTS, HSDPA, HSUPA
Antenna
SMA connection
SIM
1 slot for Mini-SIM card
Router
Function
Dial-In, dial-out, callback, connection management, DHCP server and client, full NAT (port forwarding, netmapping), DNS
relay, dynDNS support, SNMP, NTP client and server, buffered real-time clock
Security
OpenVPN (client and server), IPsec, PPTP, MAC firewall, 10 user for dial-in, authentication over PAP/CHAP/MS-CHAP/MS-
CHAP 2, dial fi lter for dial-out, linkloss detection, failed login detection, GRE
Redundancy
2 dial-out targets, 2 OpenVPN server targets
*
In preparation, see Chapter C1“Product status”
