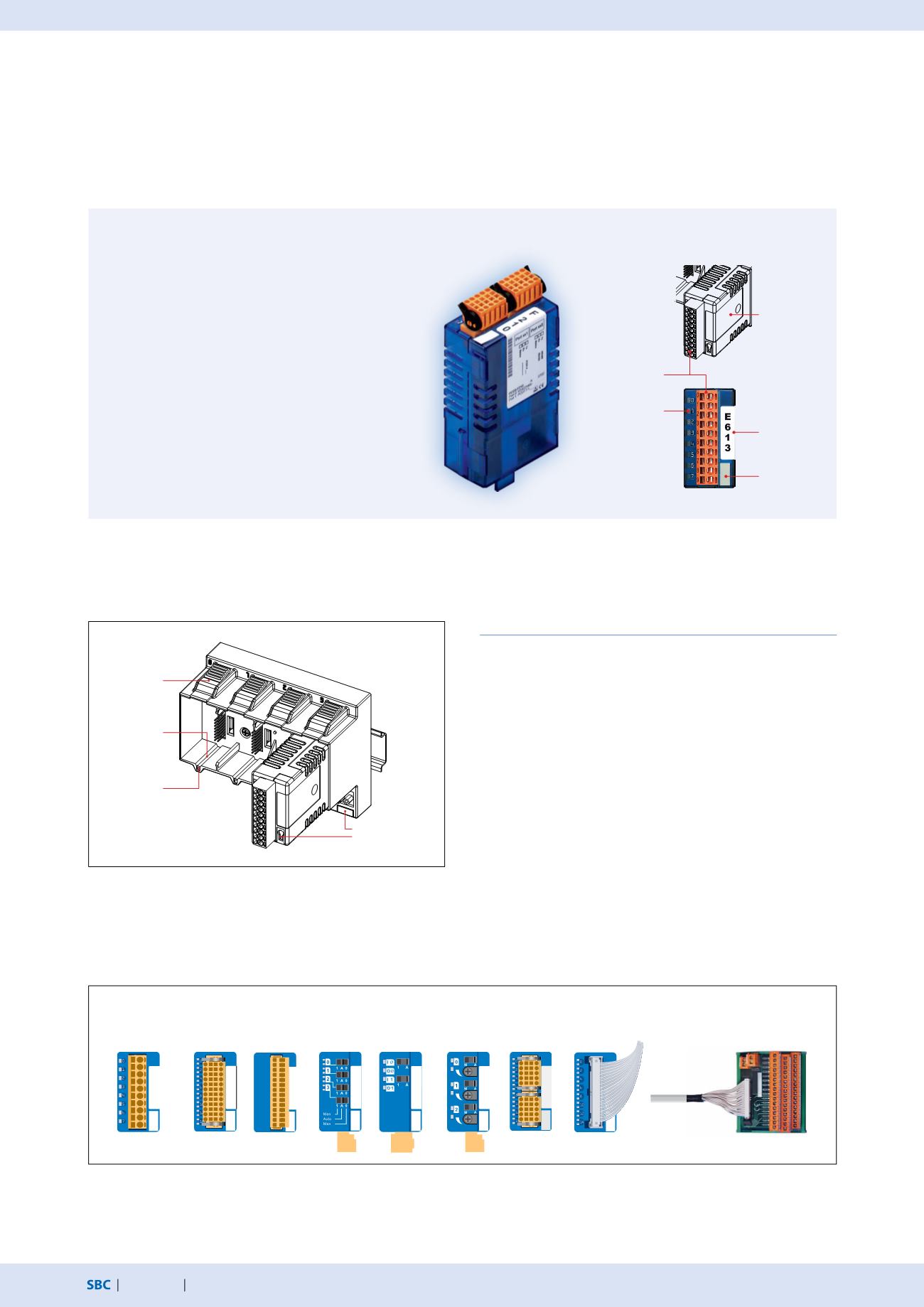

Automation stations – Saia PCD3
Saia PCD3 input and output modules in cassette design
The functions of the Saia PCD3 can be expanded as required using a wide range of plug-in I/O modules and can be adapted to specific
requirements. This not only ensures that a project can be implemented quickly, but also provides the option of expanding or modifying
the system at any time.
System properties
Numerous variants available
Slot direct in the Saia PCD3 basic CPU
or in the module holder
Full integration in the Saia PCD3 housing
Stable cartridge construction
Connection to the I/O level via plug-in spring
terminal blocks or ribbon cables and adapters
I/O terminal blocks are supplied as standard
No tools required for replacing modules
Insertion of I/O modules
Type A
10-pin
2.5mm2
Connecting plugs/terminals
Type D
Connecting plug for ribbon cable
(not supplied with the module)
Type K
10-pin
1.0 mm
2
Type J
8-pin 1.5
mm
2
Type G + H
4- + 6-pin 2.5
+ 1.5 mm
2
Type F
12-pin 1.5
mm
2
Type E
14-pin 1.5
mm
2
Type C
24-pin 1.0
mm
2
Clips
Additional
safeguard
with screw
Guideway
PCD3 with 4 module
positions
Label holder
Plug-in terminals
Nameplate with
connection
description
LED for status
indication
Simple exchange of I/O modules
Spare terminals, ribbon connectors with system cables and separate terminals are ordered as accessories.
Types
PCD3.Axxx
Digital output modules
PCD3.Bxxx
Combined digital input/output modules
PCD3.Exxx
Digital input modules
PCD3.Fxxx
Communication modules
PCD3.Hxxx
Fast counter modules
PCD3.Rxxx
Memory modules
PCD3.Wxxx
Analogue input/output modules
Over 50 modules available with different functionalities
Module type
Label holder
